Anti-Lock Brake System Module Connector End View (C135)

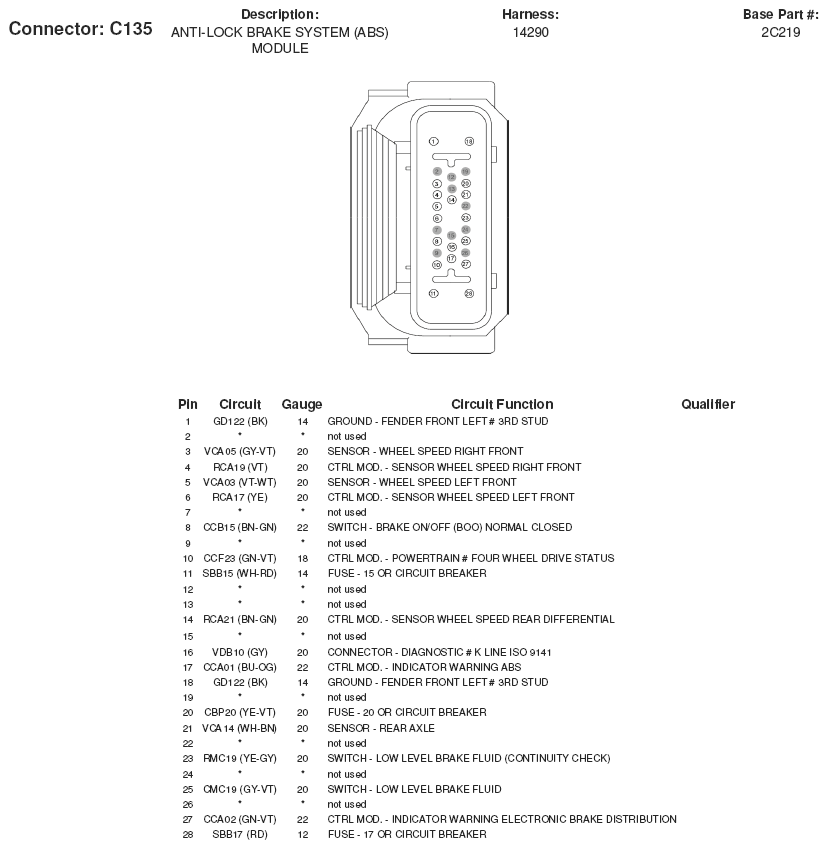

Fig 1: Anti-Lock Brake System Module Connector End View (C135)
G05169150Courtesy of FORD MOTOR CO.
