Powertrain Control Module Connector End View (C175B)
Powertrain Control Module Connector End View (C175B)

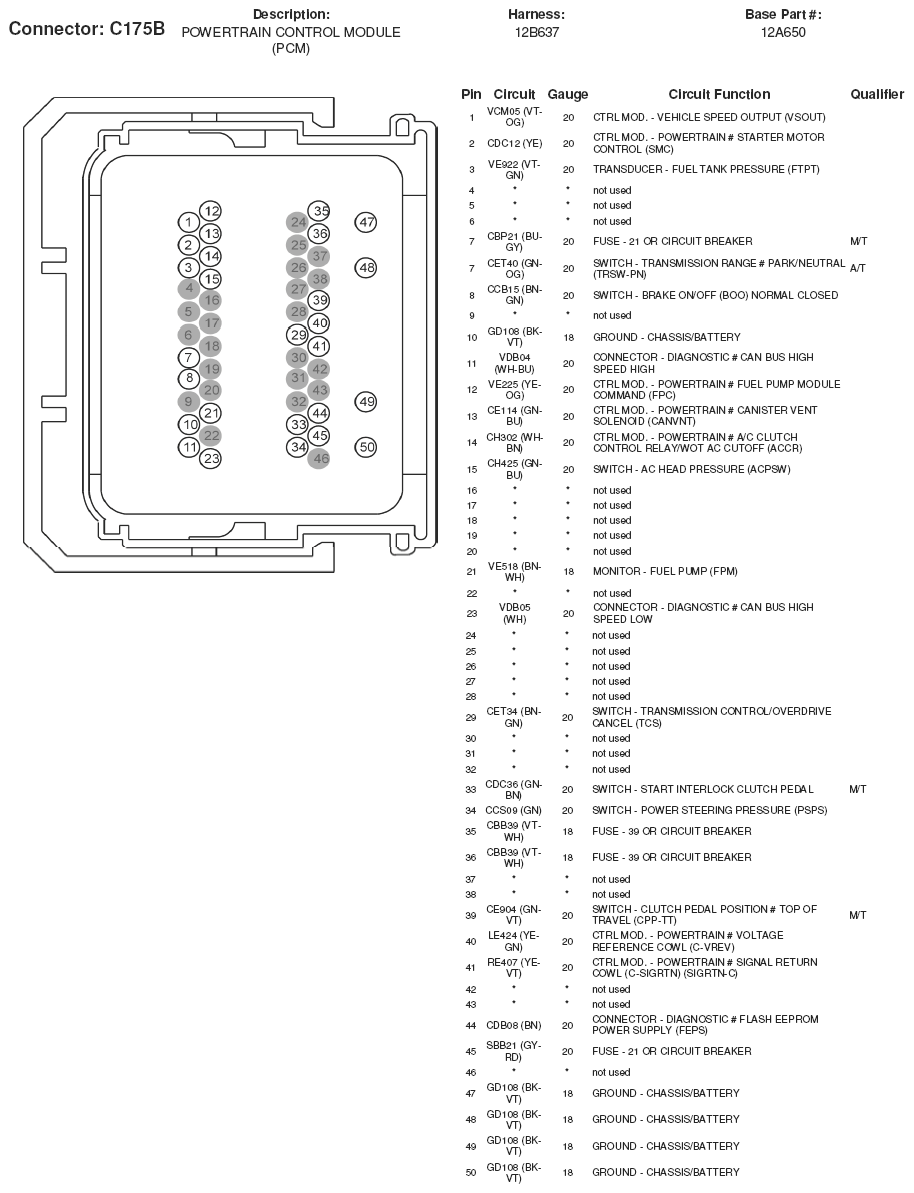

Fig 1: Powertrain Control Module Connector End View (C175B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
