Speed Control Servo Connector End View (C122)
Speed Control Servo Connector End View (C122)

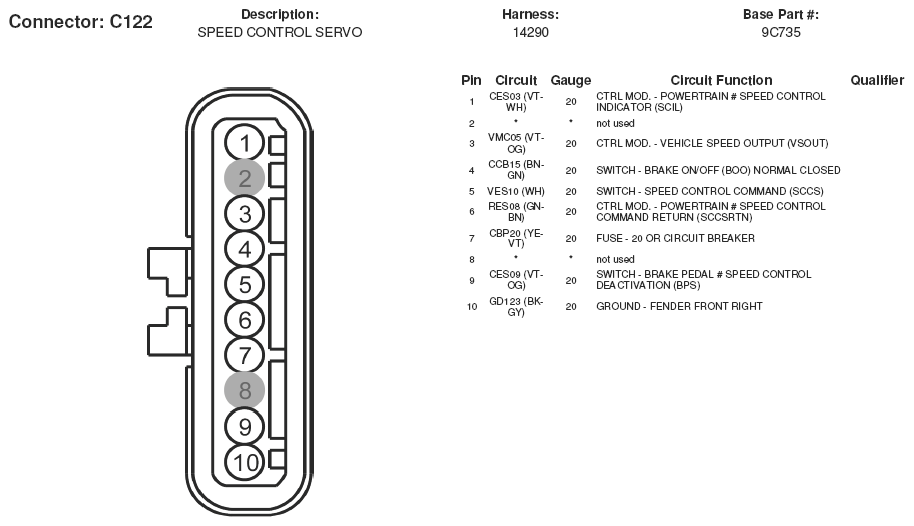

Fig 1: Speed Control Servo Connector End View (C122)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
