Fuse Block: Notes

The passenger compartment fuse block is located on the lower dash panel on driver's side, see illustrations below.

Fig 1: Locating Driver's Side Fuse Panel Cover

Courtesy of MAZDA MOTORS CORP.

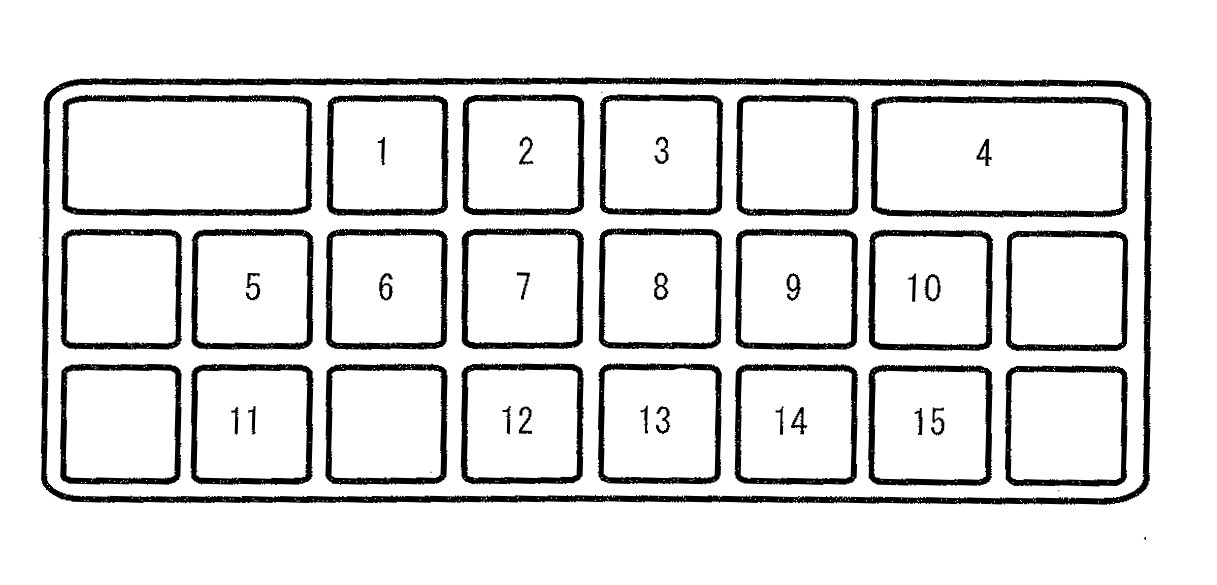

Fig 2: Identifying Instrument Panel Fuse Block Components

Courtesy of MAZDA MOTORS CORP.
