Hood Latch And Release Lever Removal/Installation: Notes

  1. To remove the acxuuw00002490od release cable, remove the following parts:
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Adjust the acxuuw00002490od. (See HOOD ADJUSTMENT ).

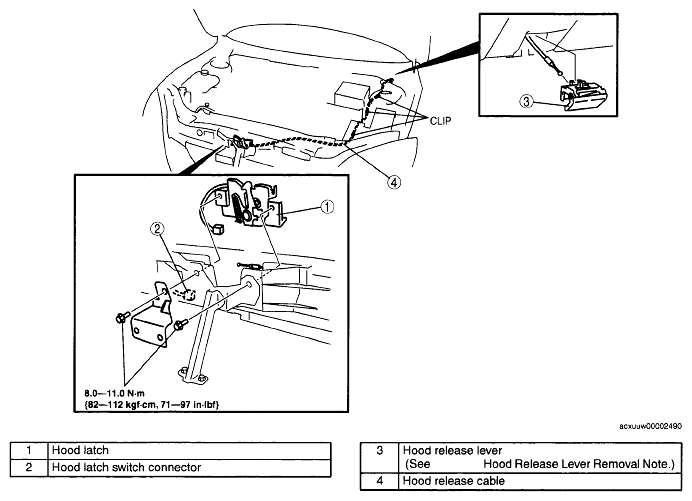

    Fig 1: Hood Latch And Release Lever Fasteners With Torque Specifications
    G04861141Courtesy of MAZDA MOTORS CORP.
