Keyless Beeper Removal/Installation[Advanced Keyless System]

  1. Disconnect the negative battery cable.
  2. Remove the mud guarde.
  3. Remove the BOLTS.
  4. Disconnect the connector, then remove the keyless acxuuw00002518eper.
  5. Install in the reverse order of removal.

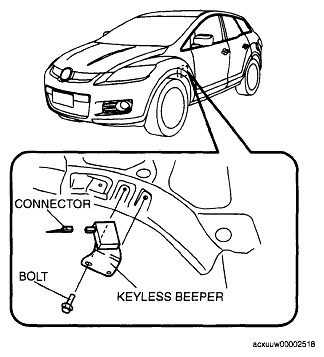

    Fig 1: Identifying Keyless Beeper And Connector
    G04861170Courtesy of MAZDA MOTORS CORP.
