Power Outer Mirror Switch Inspection

Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
- If not as indicated in the table, replace the power outer mirror switch.

  Fig 1: Continuity Reference Table
  Courtesy of MAZDA MOTORS CORP.

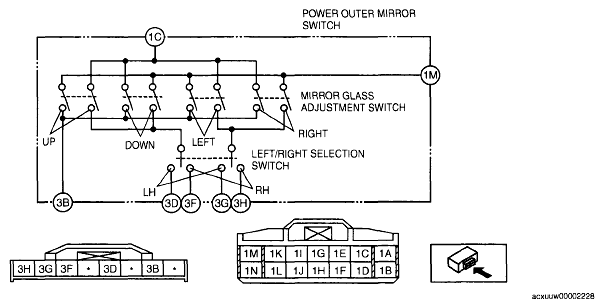

  Fig 2: Identifying Power Outer Mirror Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
