Symptom Troubleshooting [Power Window Systems (Auto-Open/Close Function)]
›
Power Window System Wiring Diagram[Power Window Systems (Auto-Open/Close Function)]
›
Power Window Subswitch (Passenger'side)
Power Window Subswitch (Passenger'side)

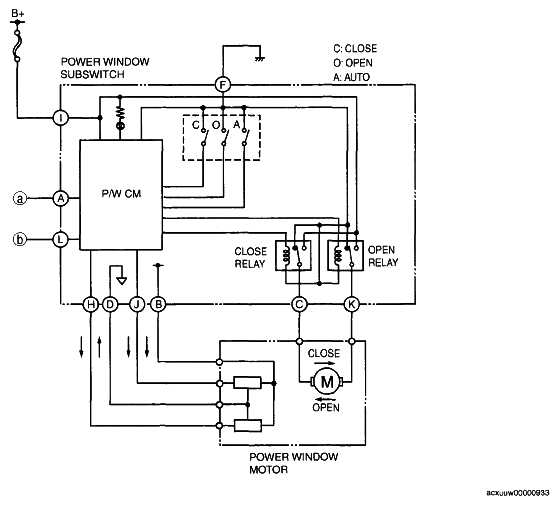

Fig 1: Power Window Subswitch Wiring Diagram (Passenger Side)
Courtesy of MAZDA MOTORS CORP.
