Symptom Troubleshooting

Verify the symptoms, and perform troubleshooting according to the appropriate number.

SYMPTOM TROUBLESHOOTING CHART

No.

Symptom

Any of the following lights do not illuminate when the ignition switch is turned to the ON position.

ABS warning light
BRAKE system warning light
DSC indicator light
TCS OFF light

Any of the following lights remain on:

ABS warning light.
BRAKE system warning light
DSC indicator light
TCS OFF light

There is a malfunction in the system even though ABS warning light, BRAKE system warning light, DSC indicator light and TCS OFF light do not illuminate.

ABS or TCS⁽¹⁾ operates frequently.

TCS does not work correctly.

DSC⁽²⁾ operates frequently.

DSC does not work correctly.

⁽¹⁾	DSC system contains traction control function; DSC indicator light illuminates and goes out while DSC is operating.

⁽²⁾	DSC indicator light illuminates and goes out while DSC is operating.

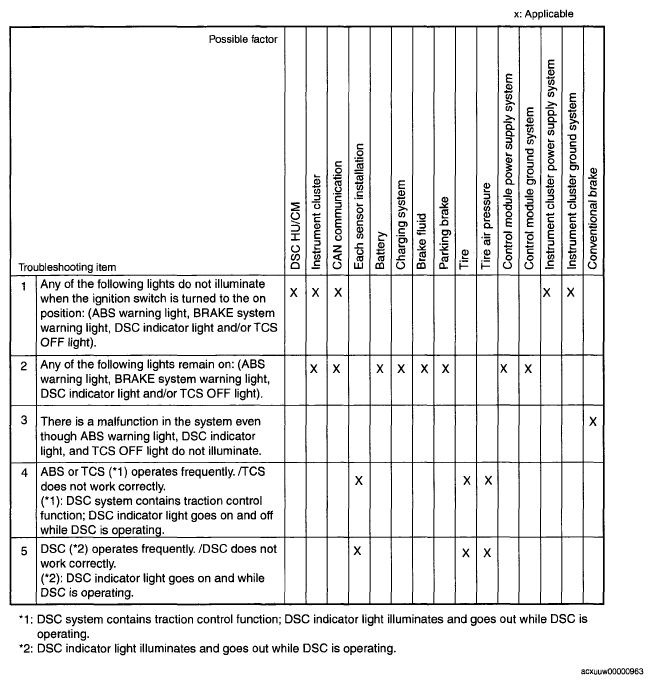

Fig 1: Symptom Troubleshooting

Courtesy of MAZDA MOTORS CORP.
