Symptom Troubleshooting [Automatic Transaxle)
›
Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram

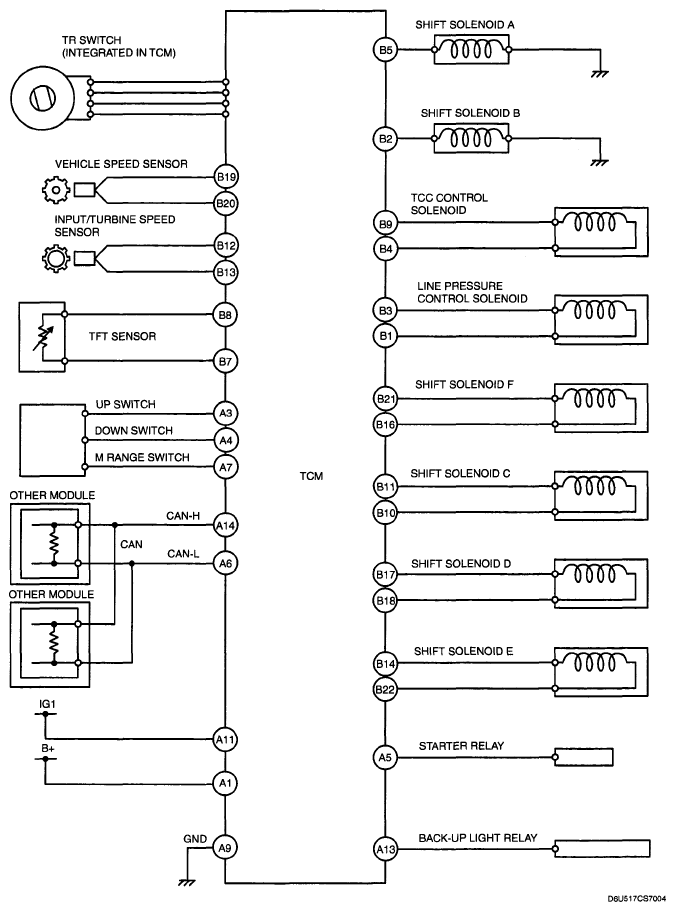

Fig 1: Automatic Transaxle Control System - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
