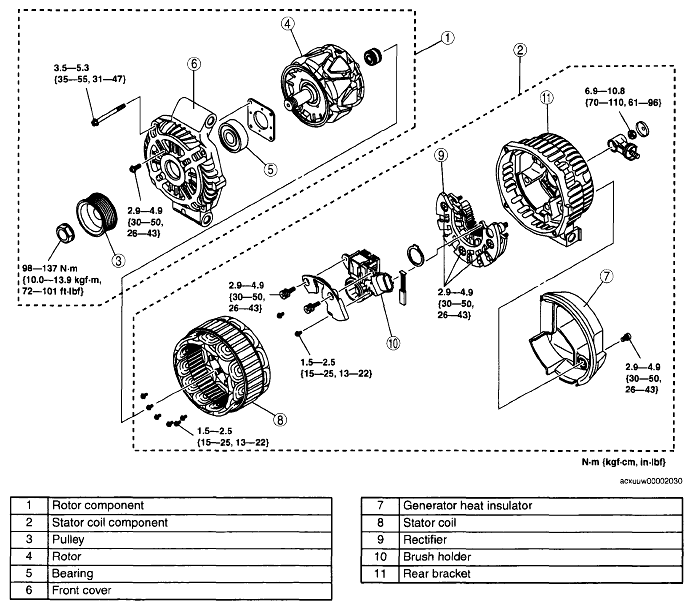

Generator Disassembly/Assembly[L3 With TC]
CAUTION:
- Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
