Engine Room Side

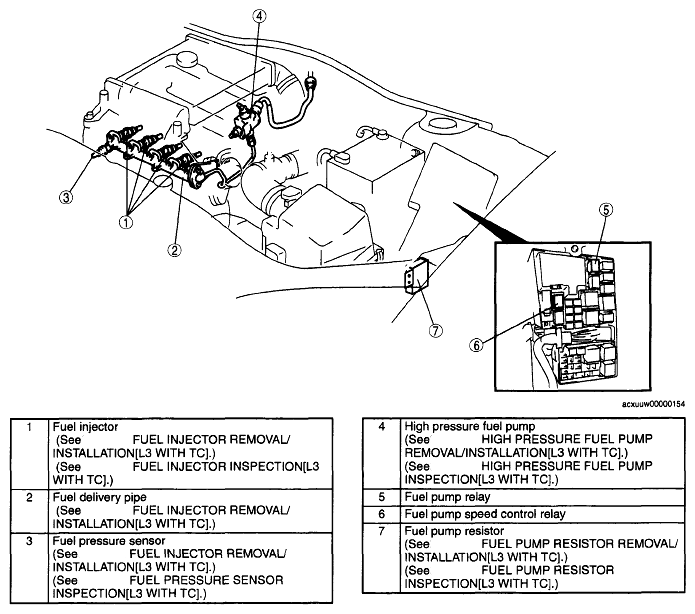

Fig 1: Identifying Fuel System Location [L3 With TC] - Engine Room Side
G04859626Courtesy of MAZDA MOTORS CORP.
