Selector Lever Component Inspection

Disconnect the negative battery cable.
Remove the center console.
Remove the dashboard completely. (See DASHBOARD REMOVAL/INSTALLATION ).
Disconnect the selector lever component connector.
Inspect for continuity at the selector lever component.
- If there is any malfunction, adjust the selector cable. (See SELECTOR CABLE ADJUSTMENT .)

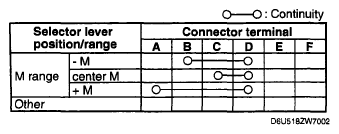

  Fig 1: Continuity Reference Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying Selector Lever Component Connector
  Courtesy of MAZDA MOTORS CORP.
