Auto Light-Off Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

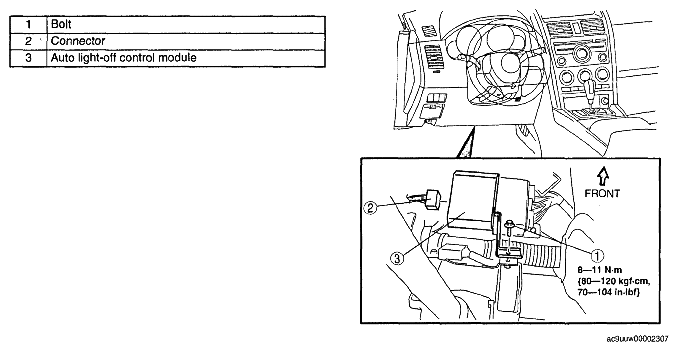

    Fig 1: Auto Light-Off Control Module, Connector And Bolt With Torque Specifications
    G04971524Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
