Control System Location Index

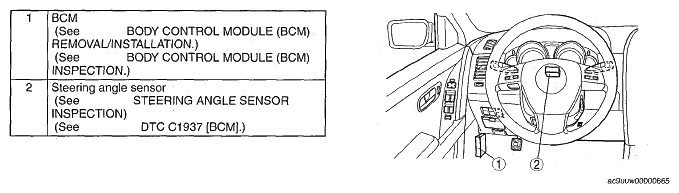

Fig 1: Identifying Control System Components
G04971747Courtesy of MAZDA MOTORS CORP.
