Circuit Open/Short Inspection: Notes

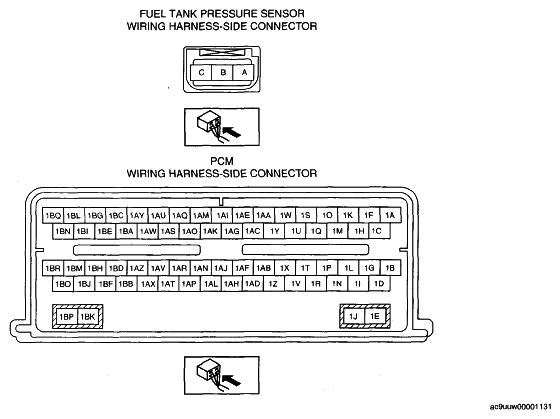

Fig 1: Identifying Fuel Tank Pressure Sensor & PCM Related Connector Terminals

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
2. Disconnect the fuel tank pressure sensor connector.
3. Inspect the following wiring harnesses for open or short. (Continuity inspection)
