Circuit Open/Short Inspection: Notes

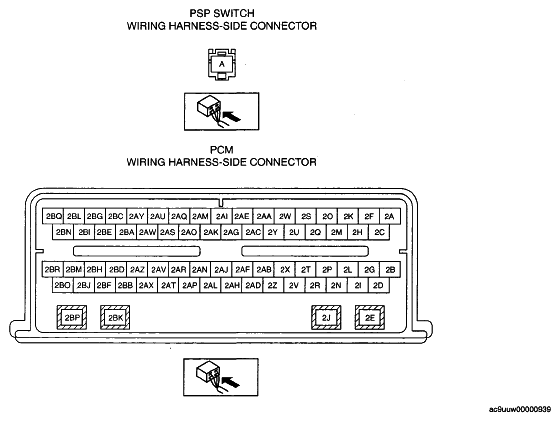

Fig 1: Identifying PSP Switch & PCM Related Connector Terminals

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
2. Inspect the following wiring harness for open or short. (Continuity inspection)
