Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following wiring harness for open or short (continuity check).

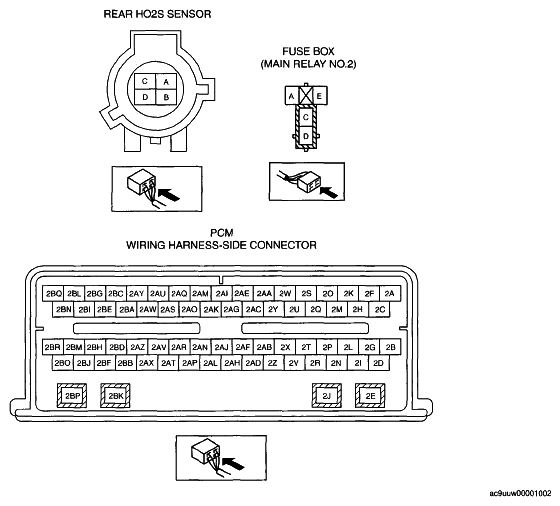

    Fig 1: Identifying PCM, HO2S And Main Relay 2 Connector Terminals
    G04969710Courtesy of MAZDA MOTORS CORP.
