Circuit Open/Short Inspection: Notes

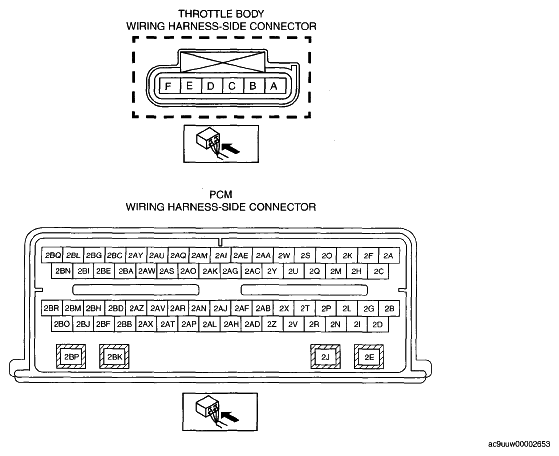

Fig 1: Identifying Throttle Body & PCM Related Connector Terminals

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
2. Inspect the following wiring harnesses for open or short circuit. (Continuity inspection)
