Power Steering Oil Pump Disassembly/Assembly: Notes

NOTE:
  • The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

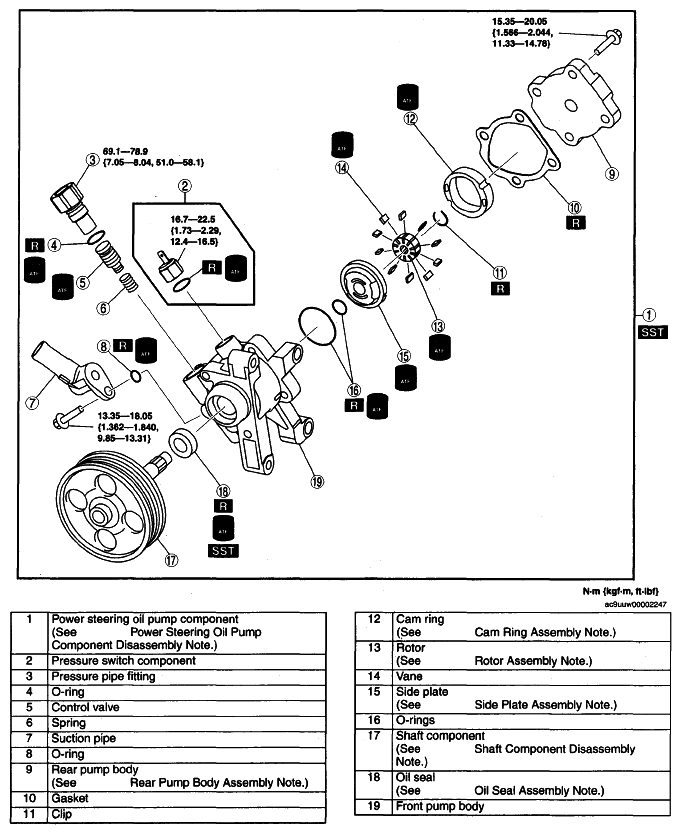

    Fig 1: Power Steering Oil Pump Replacement Components With Torque Specifications
    G04970496Courtesy of MAZDA MOTORS CORP.
