MX-5 Miata SV
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Symptom Troubleshooting (Advanced Keyless System)
›
Keyless Entry System Wiring Diagram[Advanced Keyless System]
Keyless Entry System Wiring Diagram[Advanced Keyless System]

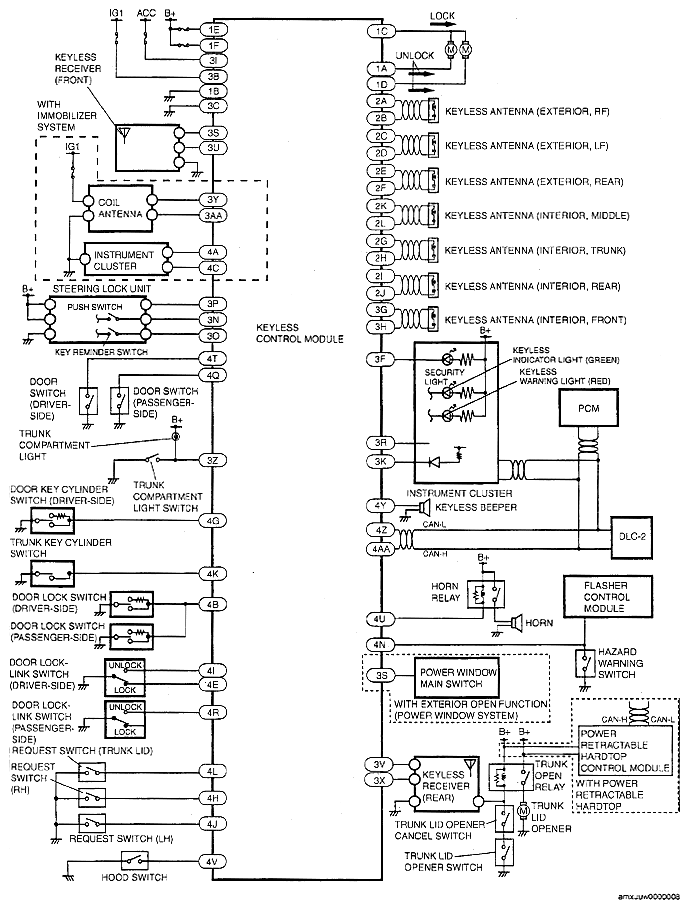

Fig 1: Keyless Entry System Wiring Diagram [Advanced Keyless System]
