Power Window Regulator Disassembly/Assembly: Notes

1. Remove in the order indicated in the table.
   Power Window Regulator Disassembly/Assembly Table



   1	Cover (See Cover Disassembly Note )
   2	Power window motor
   3	Frame

2. Assemble in the reverse order of disassembly.

NOTE:

• When installing the power window motor, be careful that the cable does not become unwounded from the drum.

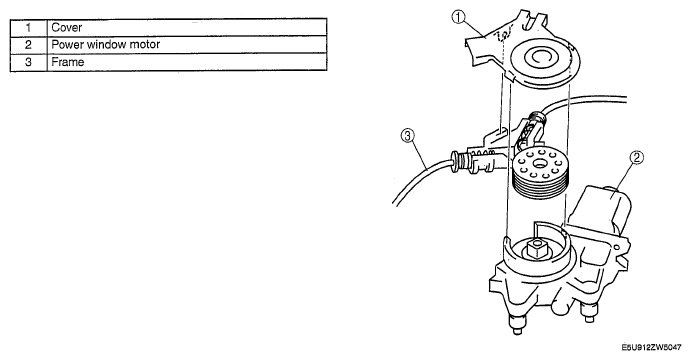

Fig 1: Power Window Regulator Disassembly/Assembly View

Courtesy of MAZDA MOTORS CORP.
