DRL Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the connectors.
  3. Remove the screw and then remove the DRL control module.
  4. Install in the reverse order of removal.

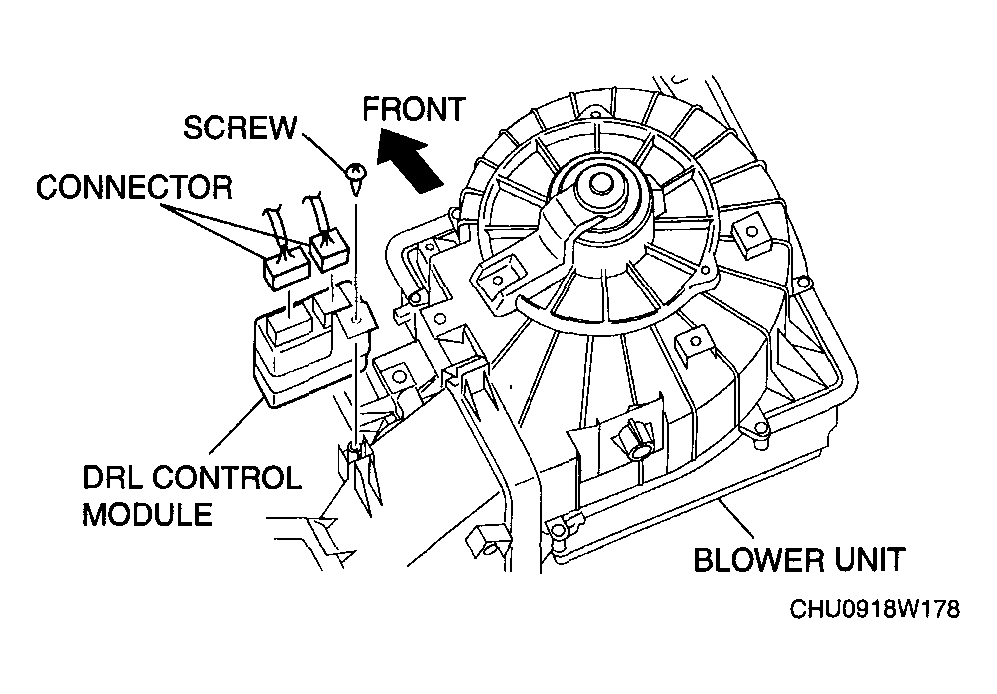

    Fig 1: Identifying DRL Control Module
    G04564522Courtesy of MAZDA MOTORS CORP.
