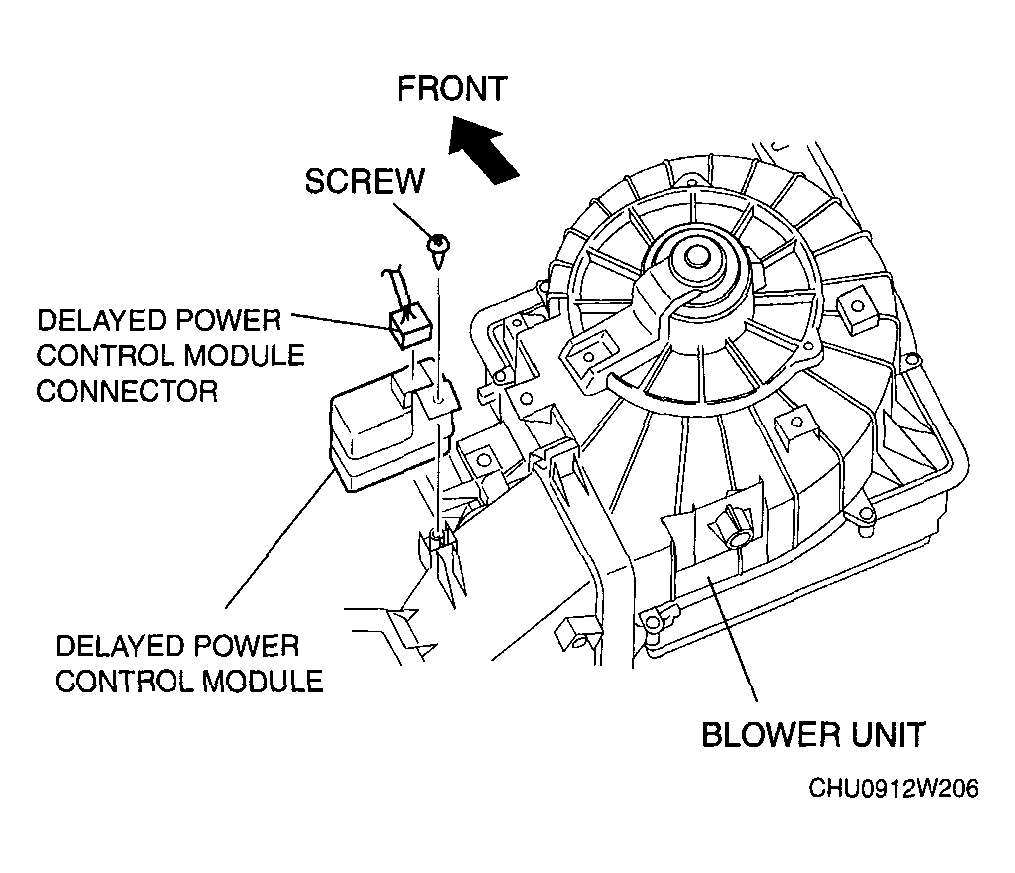

Delayed Power Control Module Removal/Installation
- Disconnect the negative battery cable.
- Disconnect the delayed power control module connector.
Courtesy of MAZDA MOTORS CORP.
- Remove the bolt and then remove the delayed power control module.
- Install in the reverse order of removal.
