Power Outer Mirror Assembly/Disassembly: Notes

  1. Disassemble in the order indicated in Fig 1
  2. Assemble in the reverse order of disassembly.

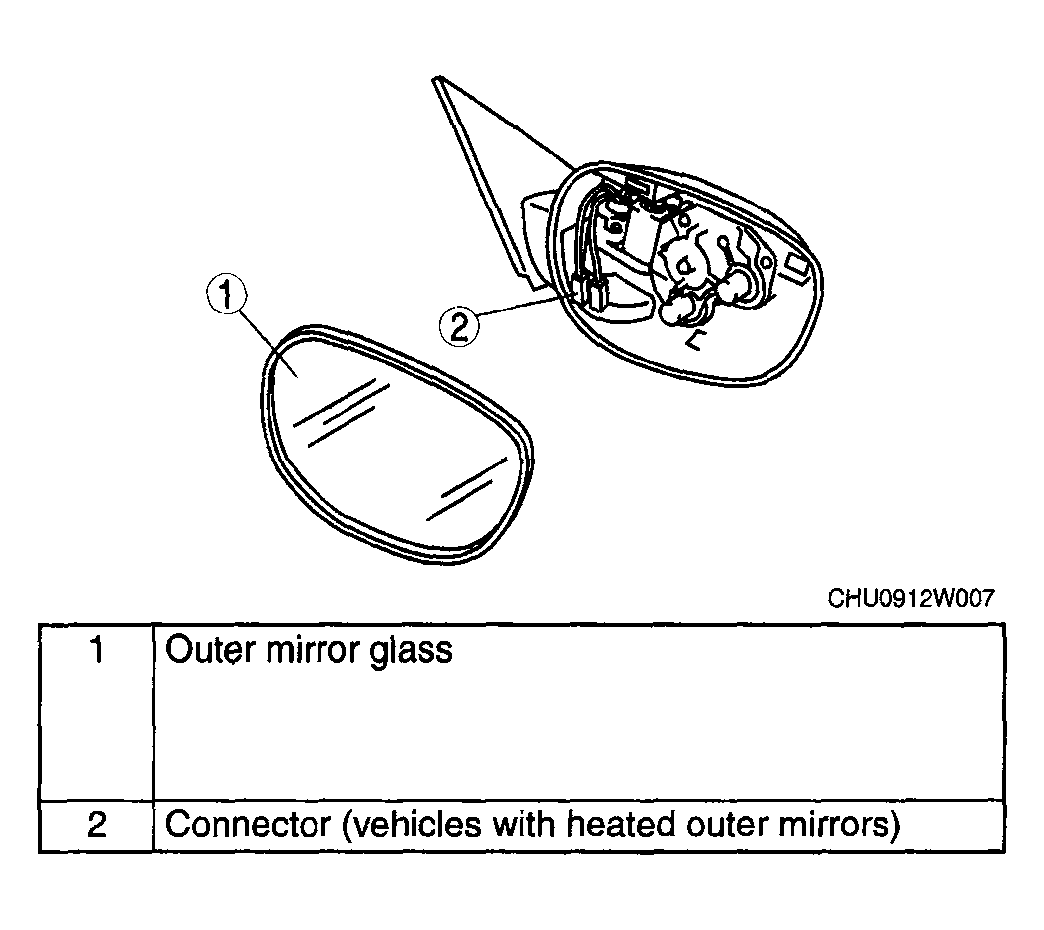

    Fig 1: Exploded View Of Power Outer Mirror
    G04564278Courtesy of MAZDA MOTORS CORP.
