Ignition Switch Inspection

  1. Verify that the continuity between the ignition switch terminals is as indicated in the table.

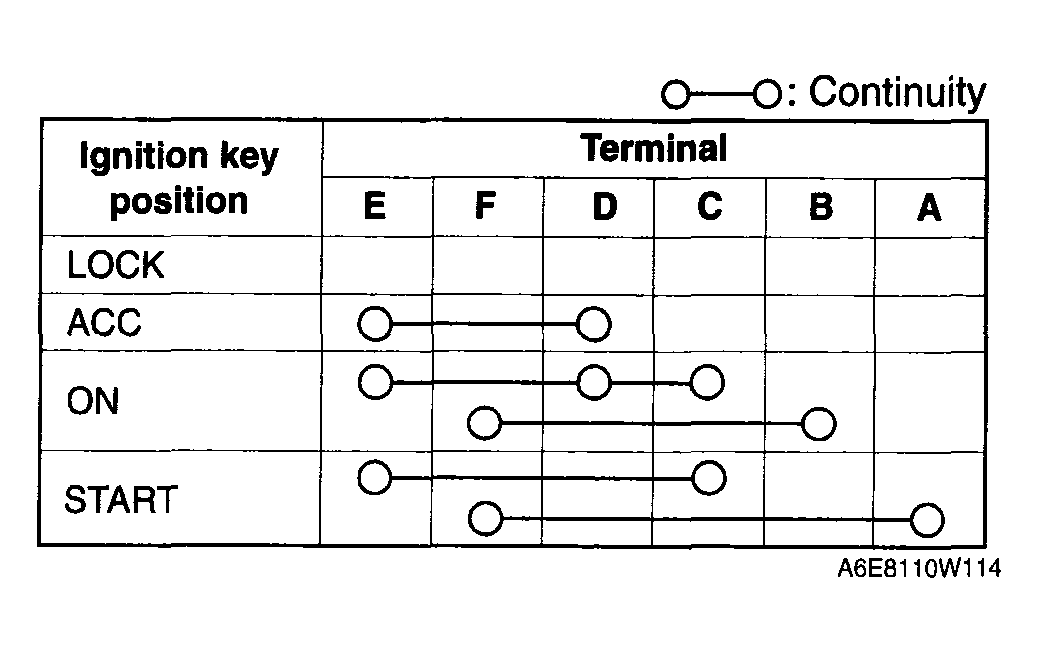

      Fig 1: Ignition Switch Continuity Reference Table
      G04564648Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the ignition switch.
      Fig 2: Identifying Ignition Switch Terminals
      G04564649Courtesy of MAZDA MOTORS CORP.
