Power Outer Mirror Switch Inspection

Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
- If not as specified, replace the power outer mirror switch.

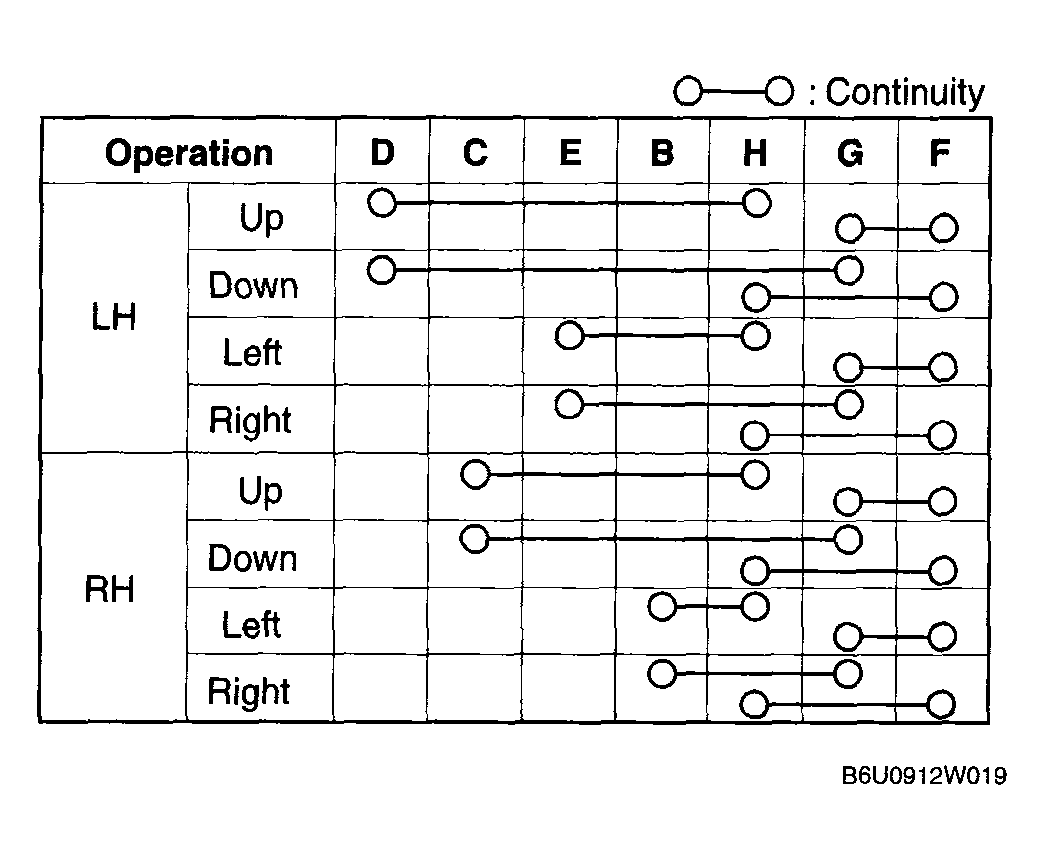

  Fig 1: Power Outer Mirror Switch Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

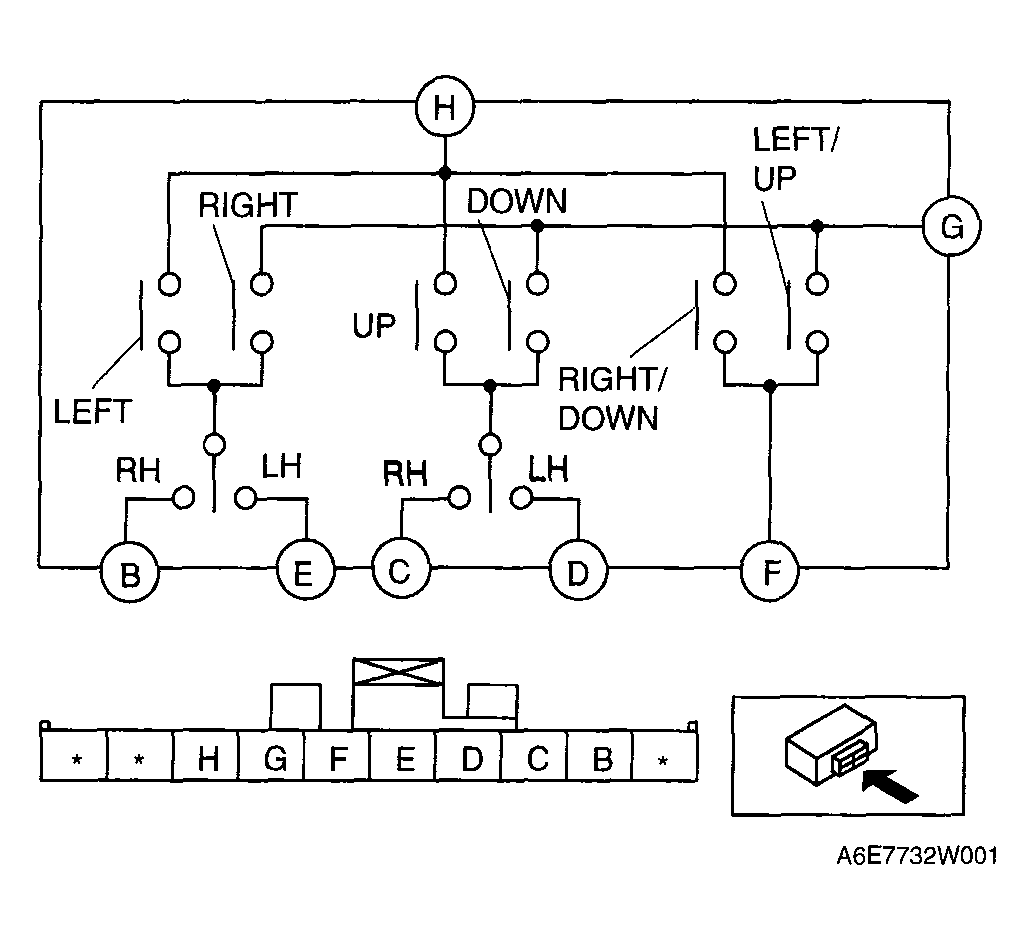

  Fig 2: Power Outer Mirror Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
