Connector Removal Note

  1. Rotate the lock lever in the direction of the arrow, and remove the DSC HU/CM connector.

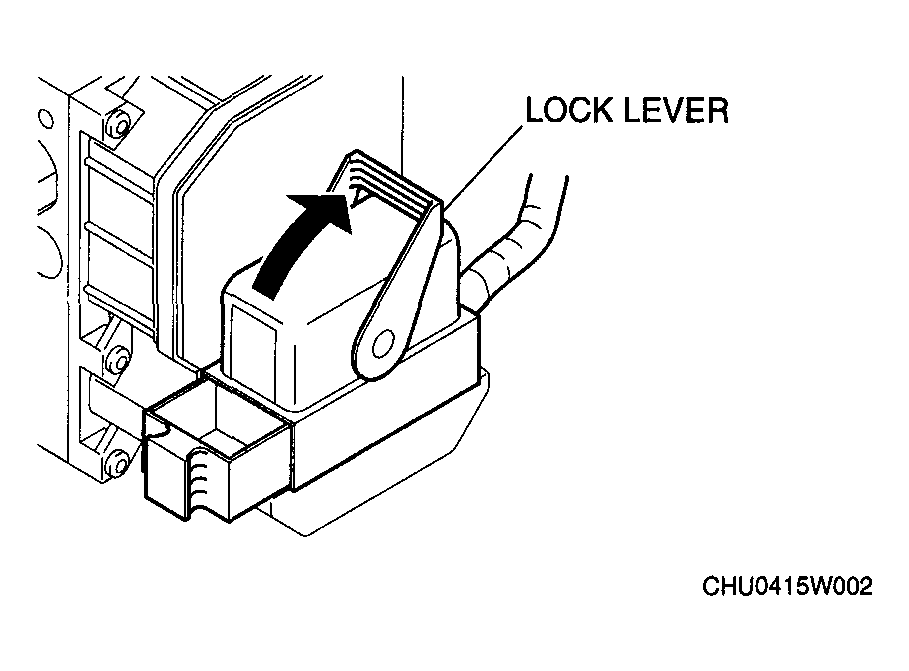

    Fig 1: Removing DSC HU/CM Connector
    G04563430Courtesy of MAZDA MOTORS CORP.
