DSC Off Switch Removal/Installation: Notes

  1. Remove in the order indicated in Fig 1.

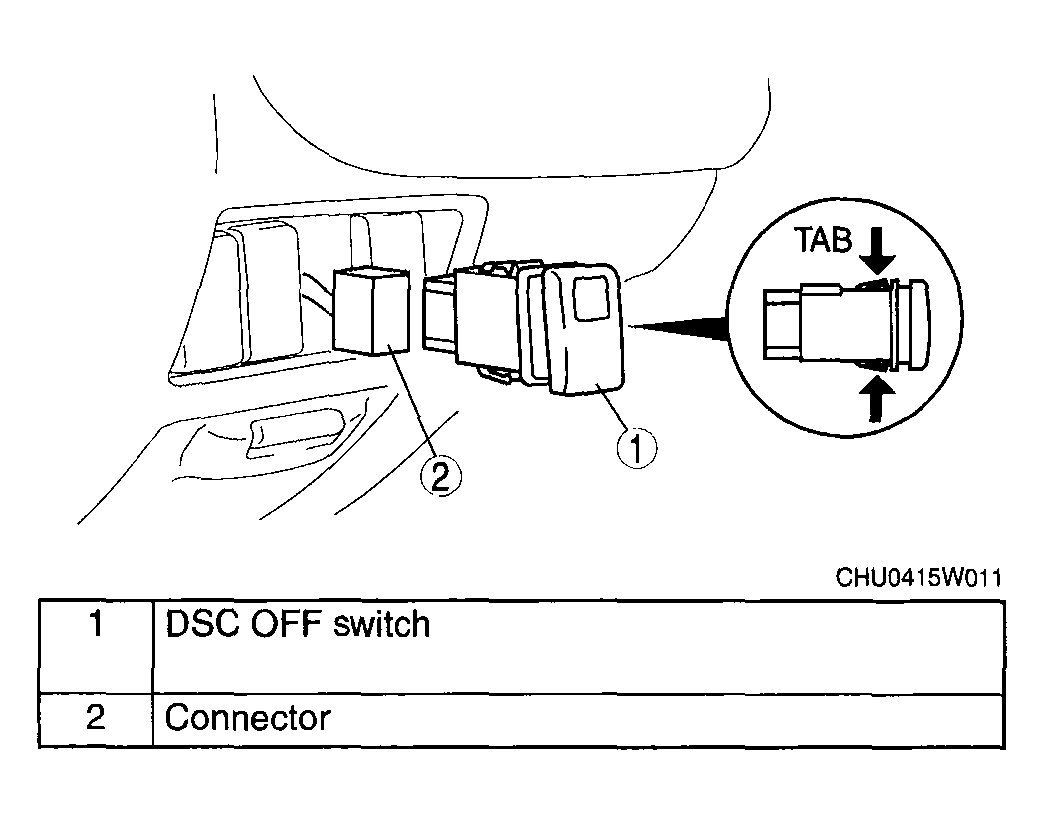

    Fig 1: Identifying DSC OFF Switch
    G04563443Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
