Starter Disassembly/Assembly

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

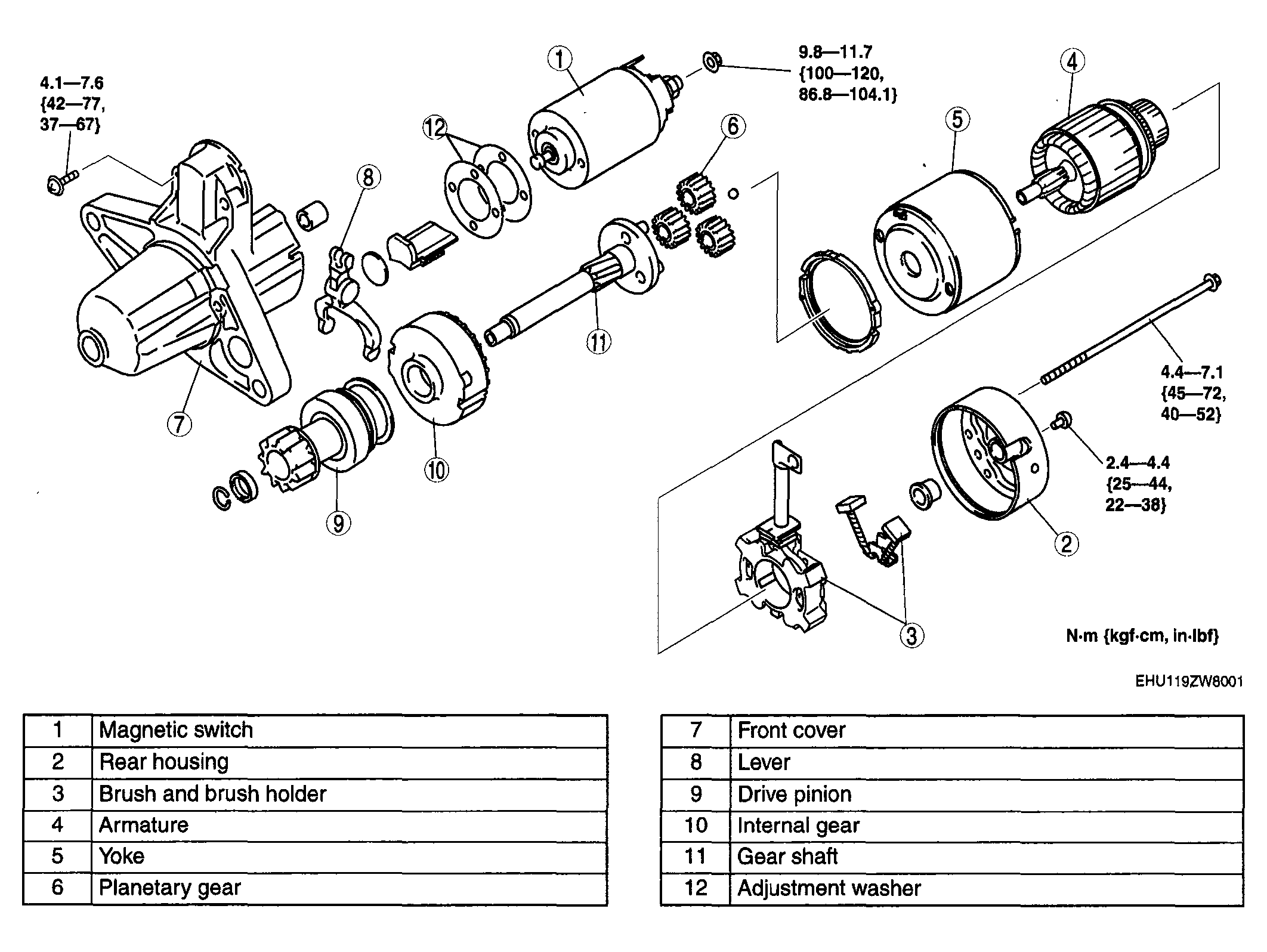

Fig 1: Disassembling Starter - AT - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

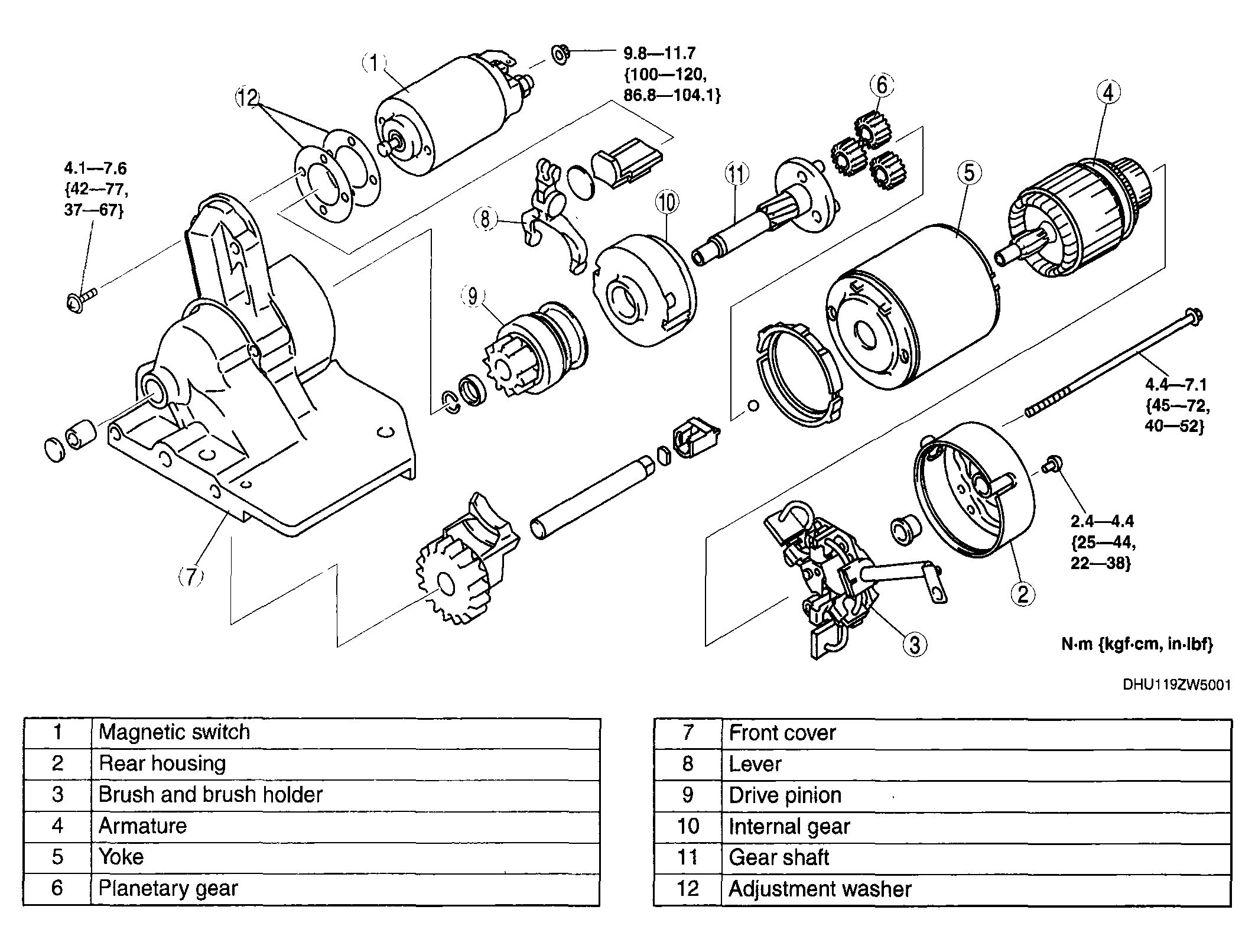

Fig 2: Disassembling Starter - MT - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
