RX-8 Touring, 1.3 3
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Control System Diagram
Control System Diagram

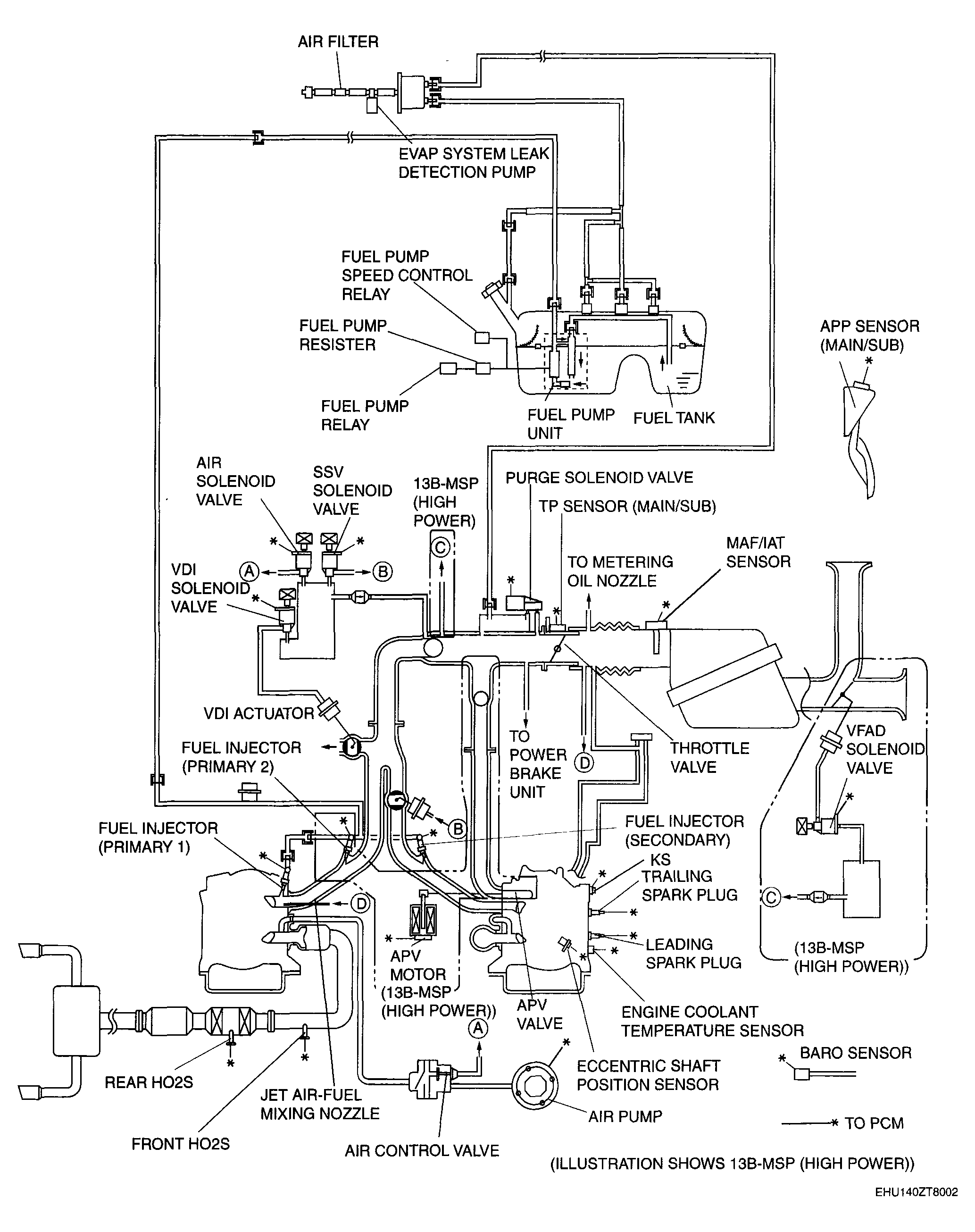

Fig 1: Control System Diagram
