Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Disconnect the KS connector.
  3. Inspect the following wiring harnesses for open or short. (Continuity inspection)

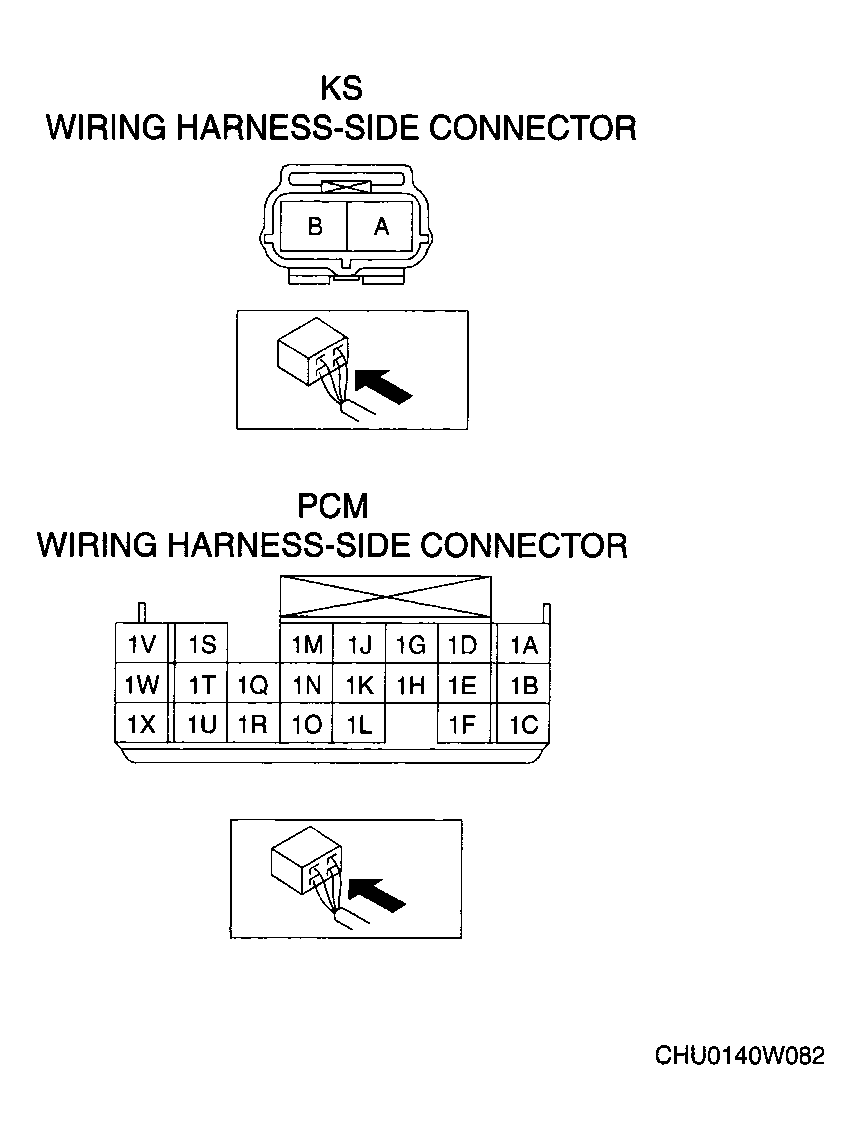

    Fig 1: Identifying KS & PCM Wiring Harness Side Connector Terminal
    G04563028Courtesy of MAZDA MOTORS CORP.
