Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Disconnect the neutral switch connectors.
  3. Inspect the following wiring harnesses for open or short circuit. (Continuity inspection)

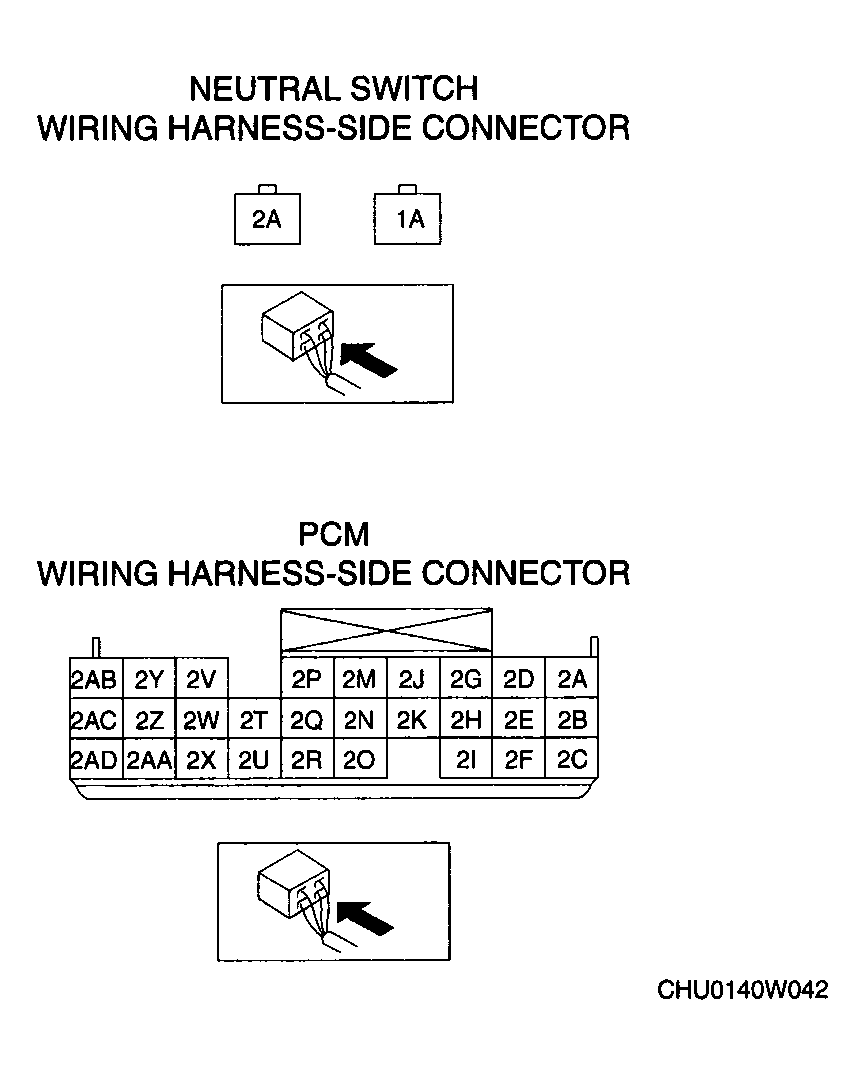

    Fig 1: Identifying Neutral Switch & PCM Wiring Harnesses Side Connector Terminal
    G04562997Courtesy of MAZDA MOTORS CORP.
