RX-8 Touring, 1.3 3
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›
Eccentric shaft position sensor
Eccentric shaft position sensor
Terminal connected: 2U (+)-Negative battery terminal
Oscilloscope setting: 2 V/DIV (Y): 5 ms/DIV (X), DC range
Measurement condition: Idling after warm-up (no load)

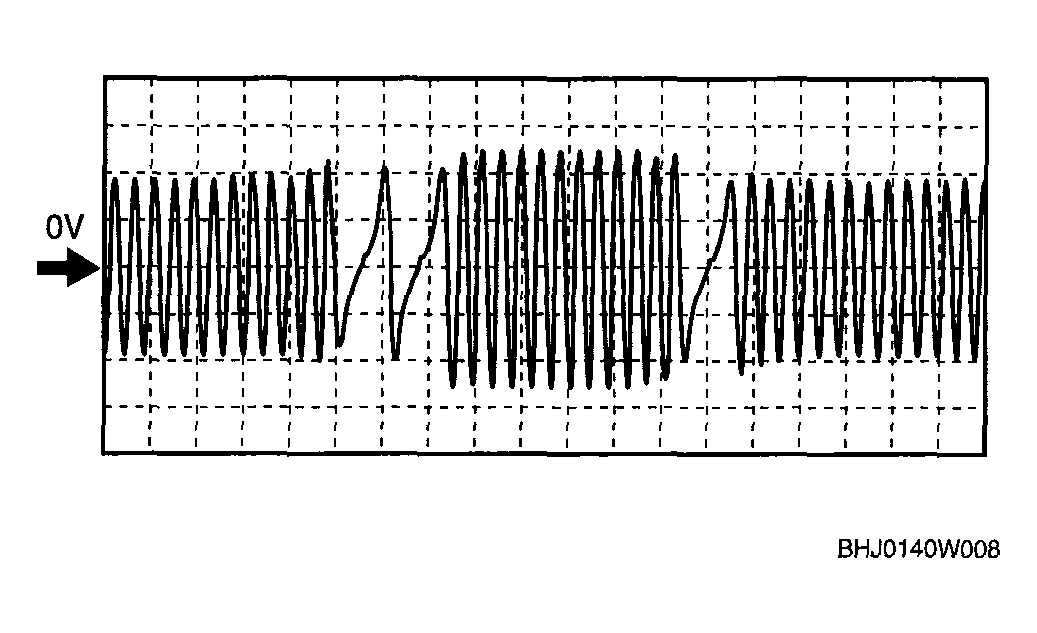

Fig 1: Eccentric Shaft Position Sensor Graph
Courtesy of MAZDA MOTORS CORP.
