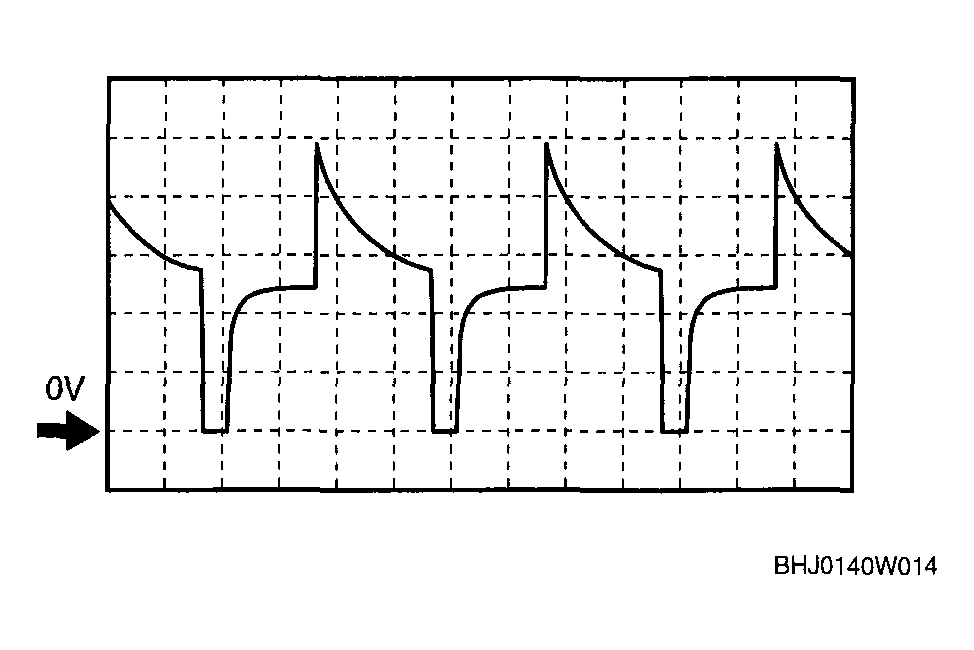

Metering oil pump control 4
- Terminal connected: 2Y (+)-Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 2 ms/DIV (X), DC range
- Measurement condition: Just after the ignition switch is off after warm-up (no load)
Courtesy of MAZDA MOTORS CORP.
