Rear HO2S heater control

Terminal connected: 2A (+)-Negative battery terminal
Oscilloscope setting: 5 V/DIV (Y): 50 ms/DIV (X), DC range
Measurement condition: Idling after warm-up (no load)

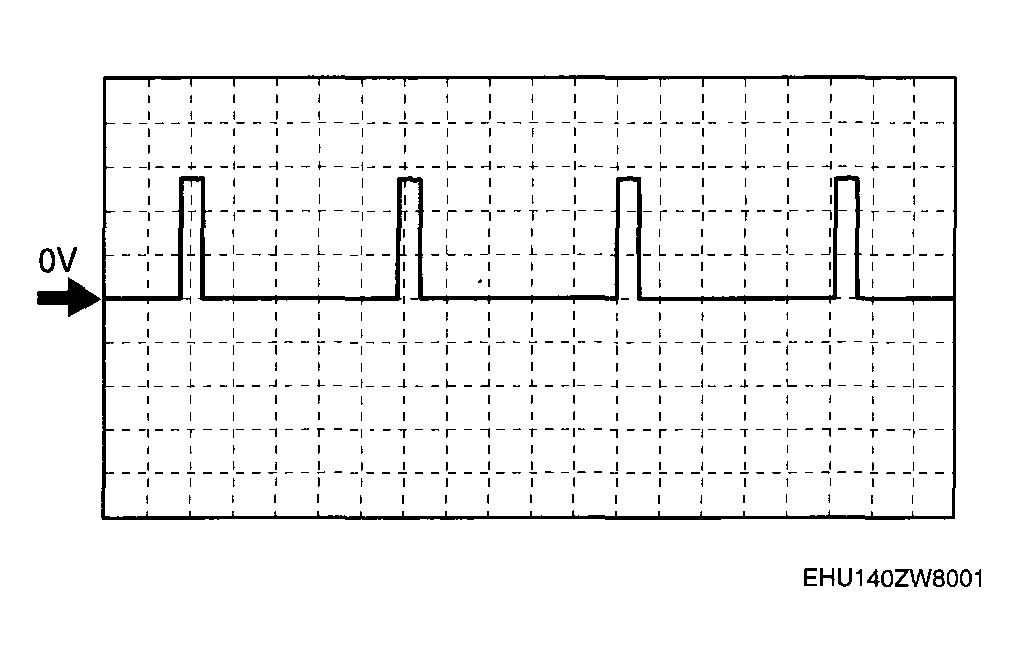

Fig 1: Rear Ho2S Heater Control Graph
Courtesy of MAZDA MOTORS CORP.
