Ignition Coil Removal/Installation

  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION ).
  2. Remove the battery cover.
  3. Remove the negative battery cable. (See BATTERY REMOVAL/INSTALLATION ).
  4. Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
  5. Remove in the order indicated in Fig 1.
  6. Install in the reverse order of removal.

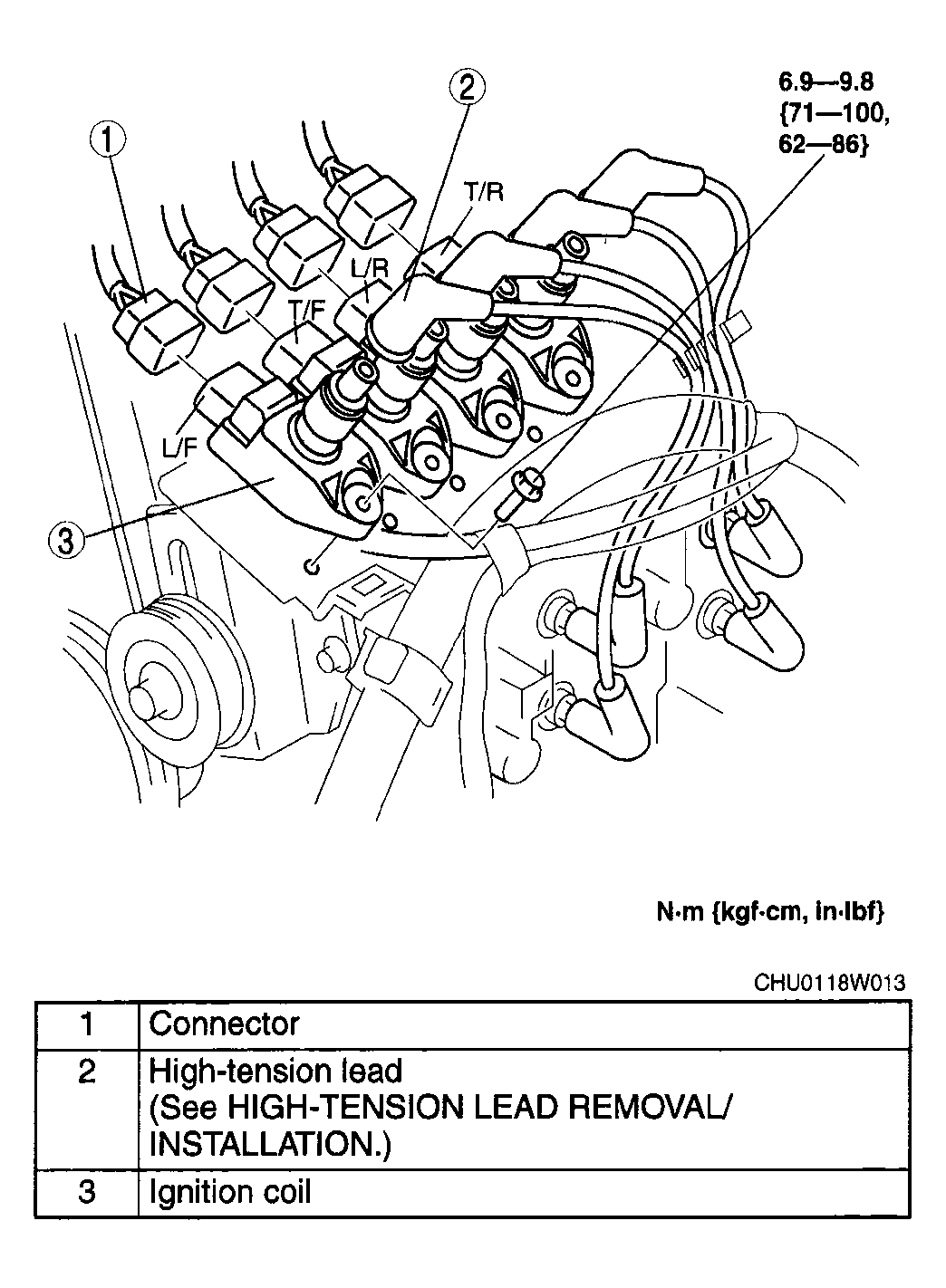

    Fig 1: Removing & Installing Ignition Coil With Torque Specifications
    G04562940Courtesy of MAZDA MOTORS CORP.
