5 Touring, 2.3 L
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (L3)
›
Control System Diagram [L3]
Control System Diagram [L3]

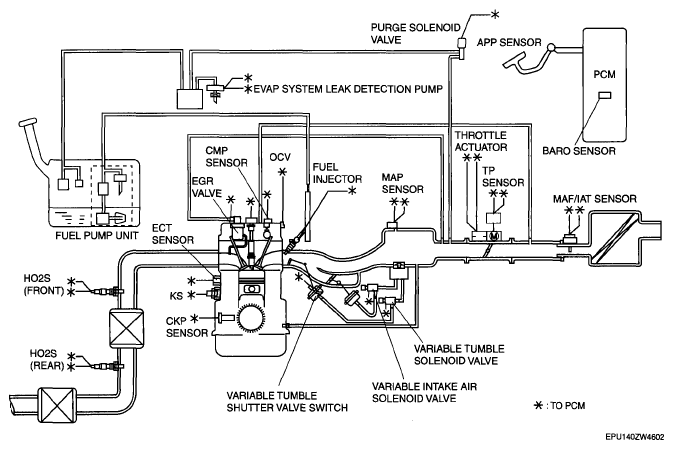

Fig 1: Control System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
