Front HO2S Circuit Open/Short Inspection (Sensor): Notes

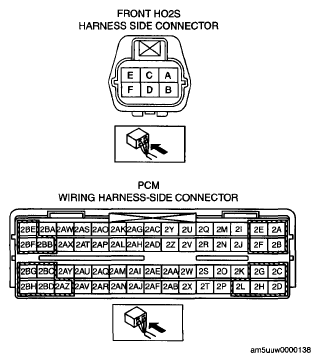

Fig 1: Identifying Front Heated Oxygen Sensor Connector Terminals

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector.
2. Disconnect the front HO2S connector.
3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
