Multifunction Switch Connector End View (C202B)

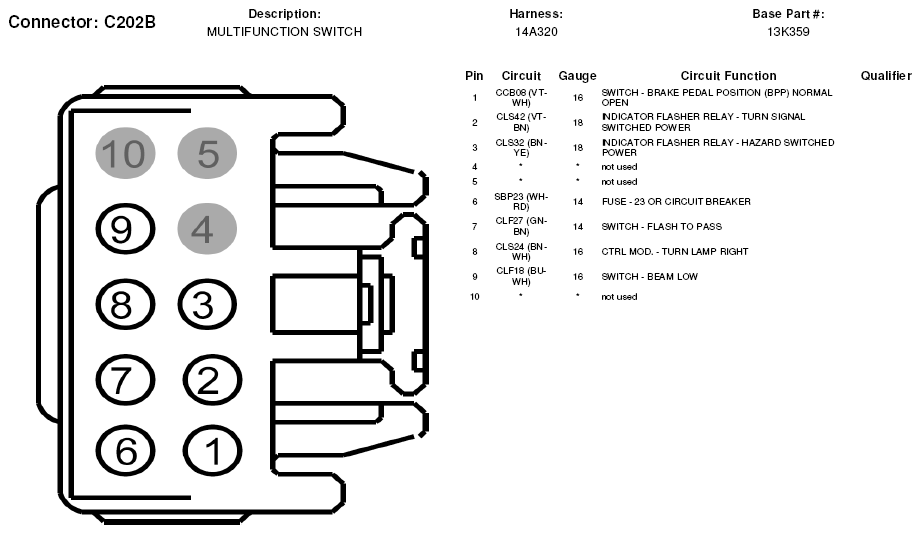

Fig 1: Multifunction Switch Connector End View (C202B)
G05603075
