Socket Removal Note (Left Side Only)

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery.
Remove the fresh-air duct installation bolt.
Slide the fresh-air duct to the right, and ensure space for the socket removal.

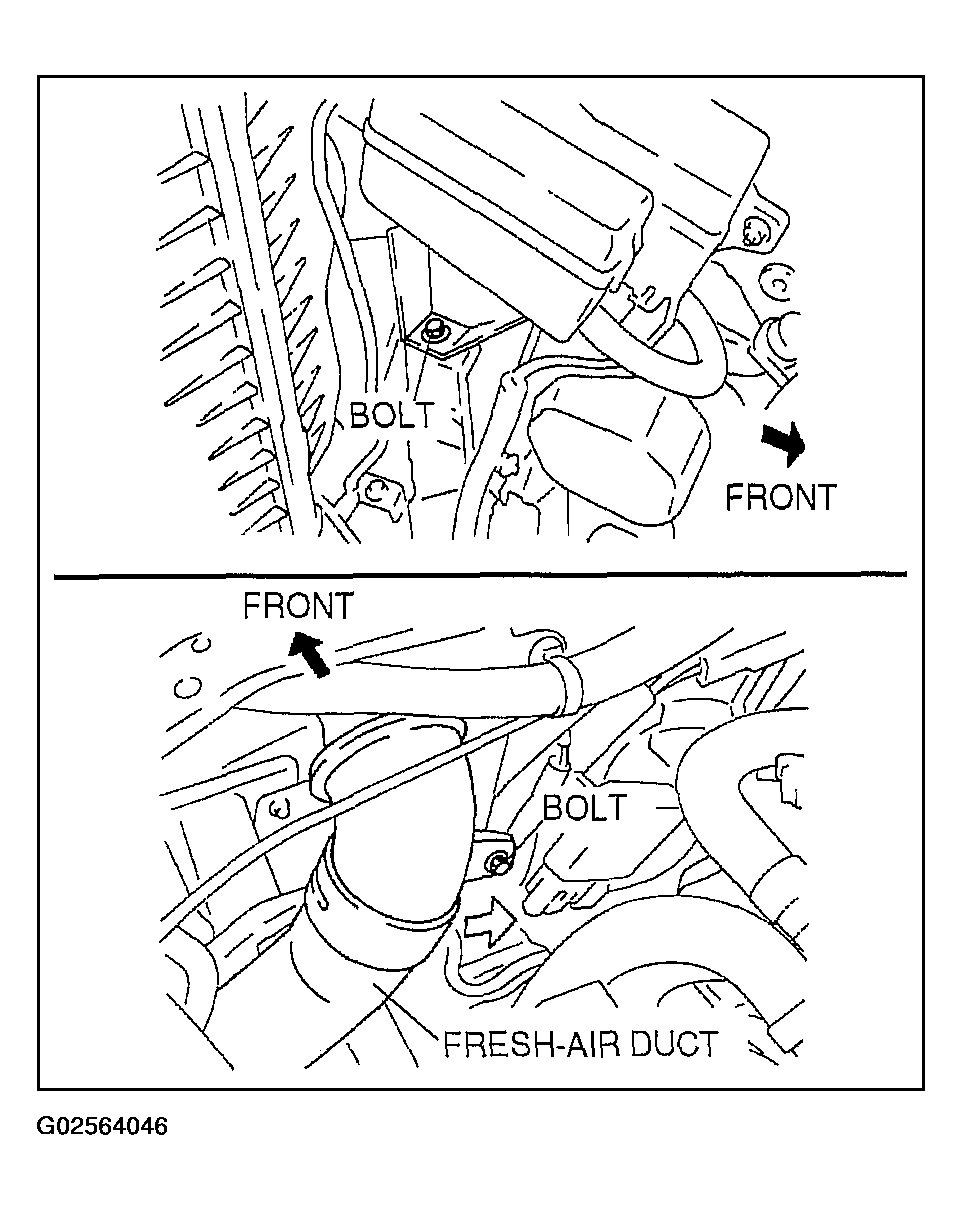

Fig 1: Removing Fresh-Air Duct Installation Bolt
Courtesy of MAZDA MOTORS CORP.
