Floor Console: Notes

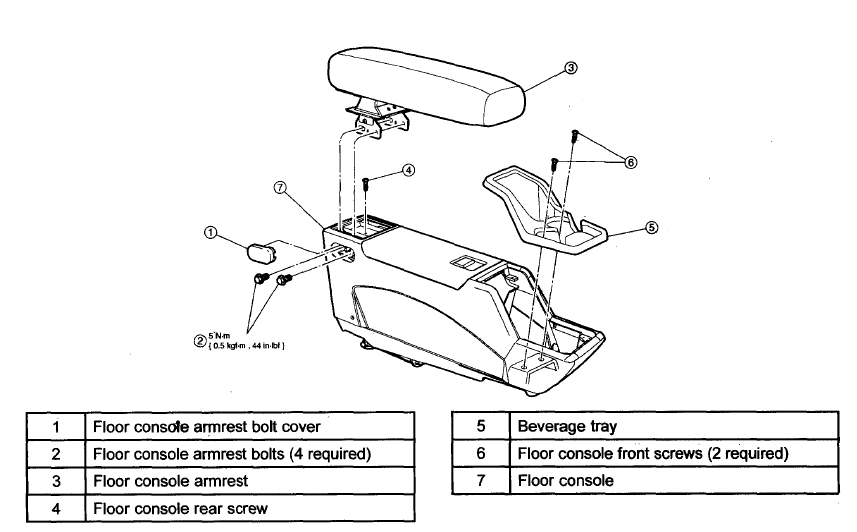

Fig 1: Removing/Installing Floor Console With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

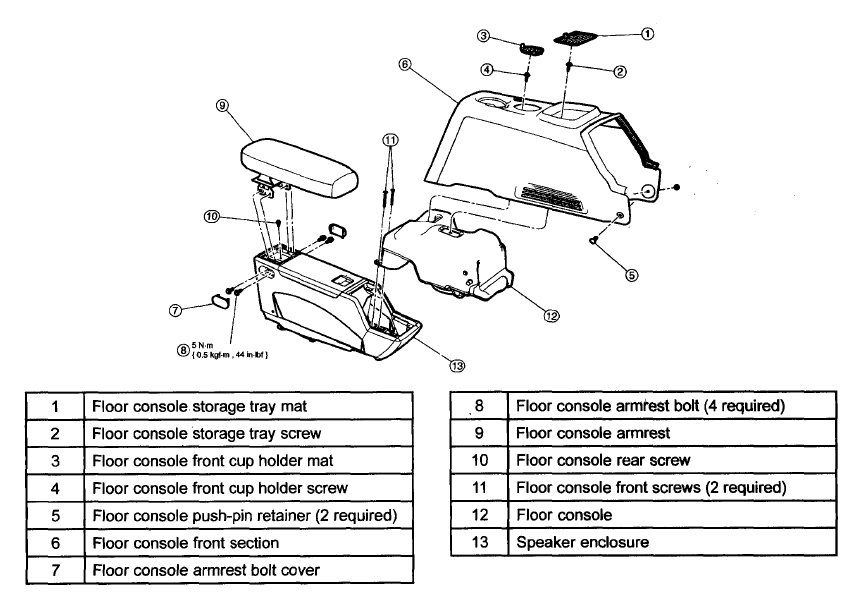

Fig 2: Removing/Installing Floor Console - With Speaker Enclosure With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
