Four Wheel Drive Control Module Connector End View (C281B)
Four Wheel Drive Control Module Connector End View (C281B)

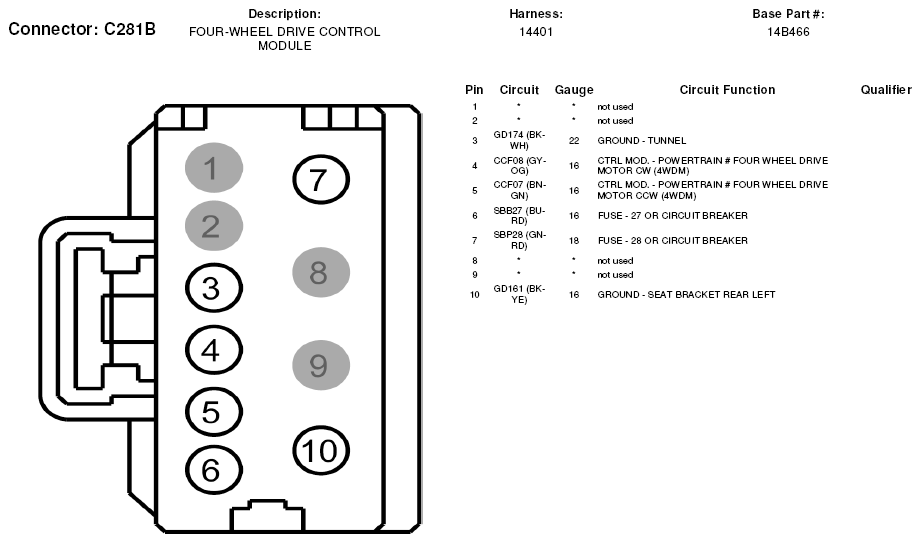

Fig 1: Four Wheel Drive Control Module Connector End View (C281B)
