Speed Control On/Off Switch Connector End View (C2178)
Speed Control On/Off Switch Connector End View (C2178)

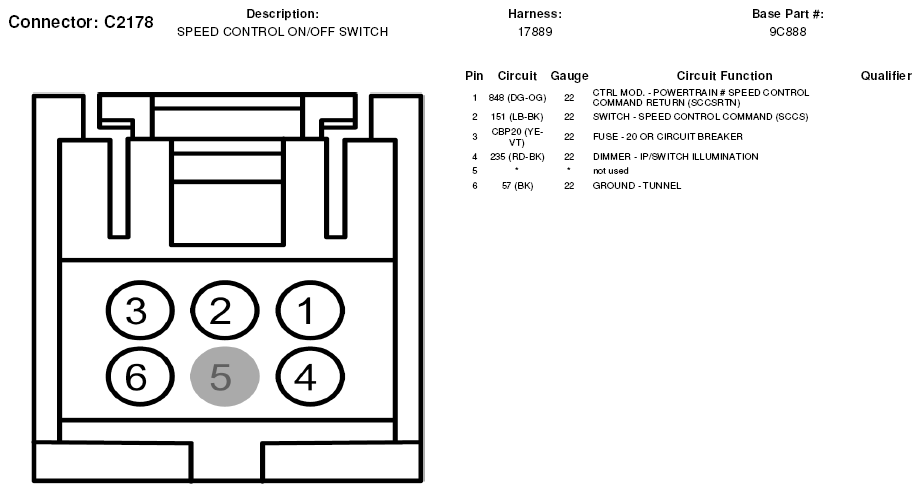

Fig 1: Speed Control On/Off Switch Connector End View (C2178)
