Connector End Views - Restraints

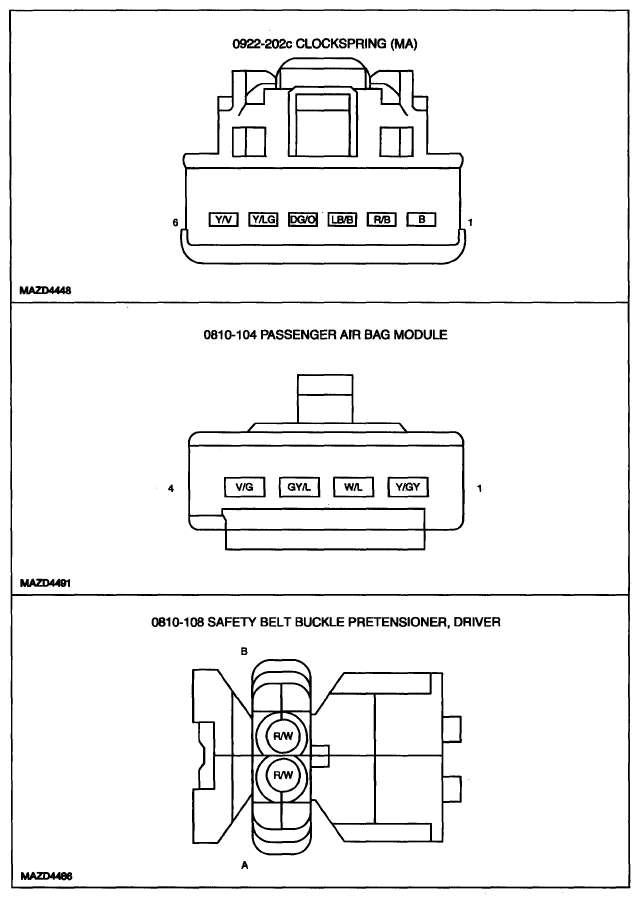

Fig 1: Connector End Views - Restraints (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

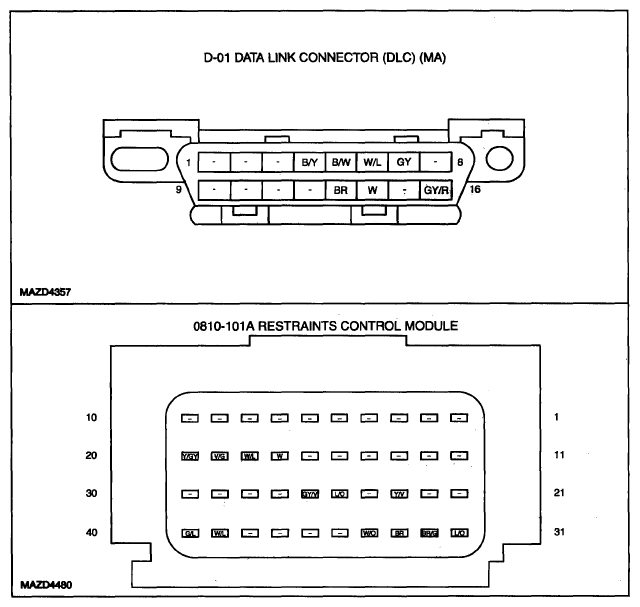

Fig 2: Connector End Views - Restraints (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

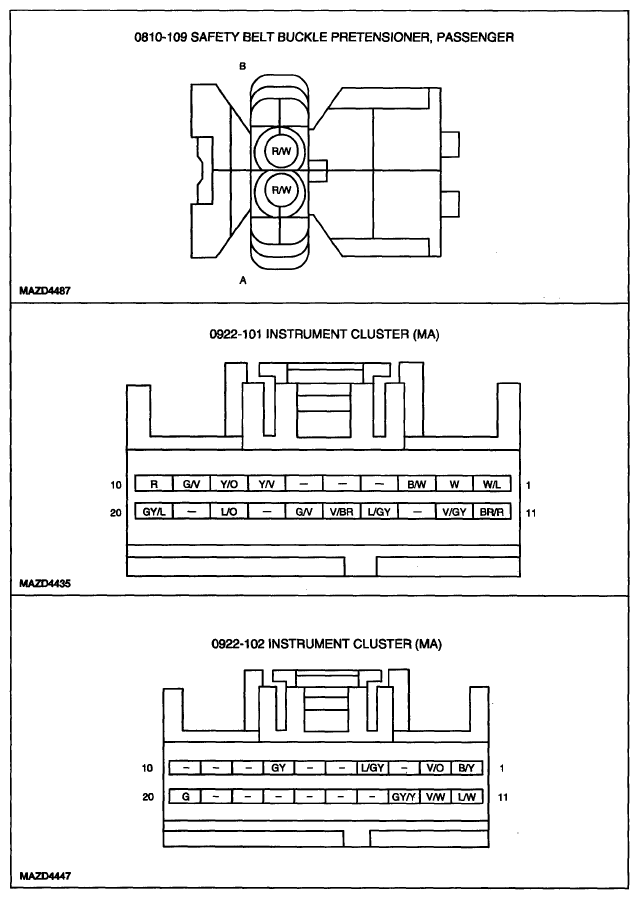

Fig 3: Connector End Views - Restraints (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

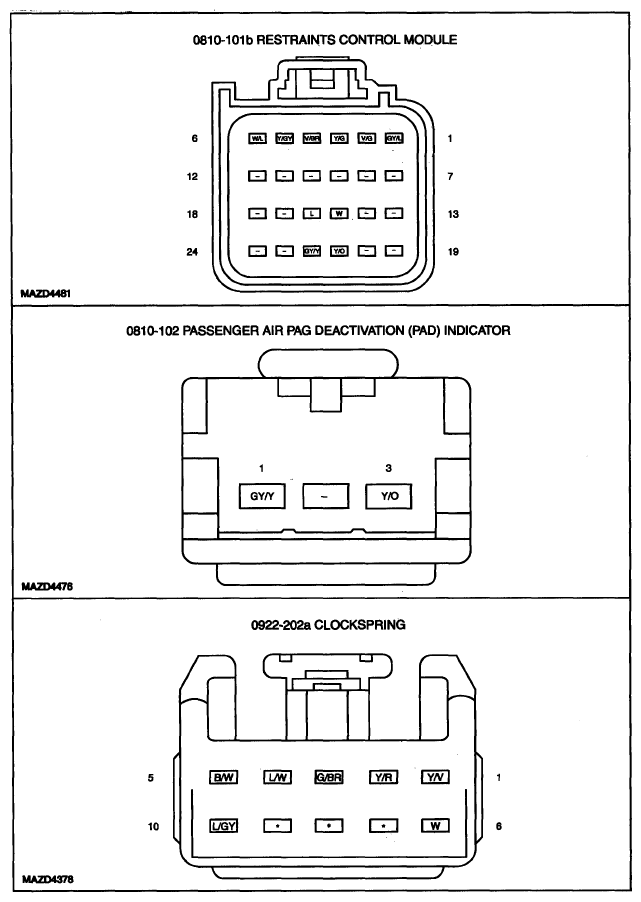

Fig 4: Connector End Views - Restraints (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
