Steering Column - Automatic Transmission
›
Steering Column Components
Steering Column Components

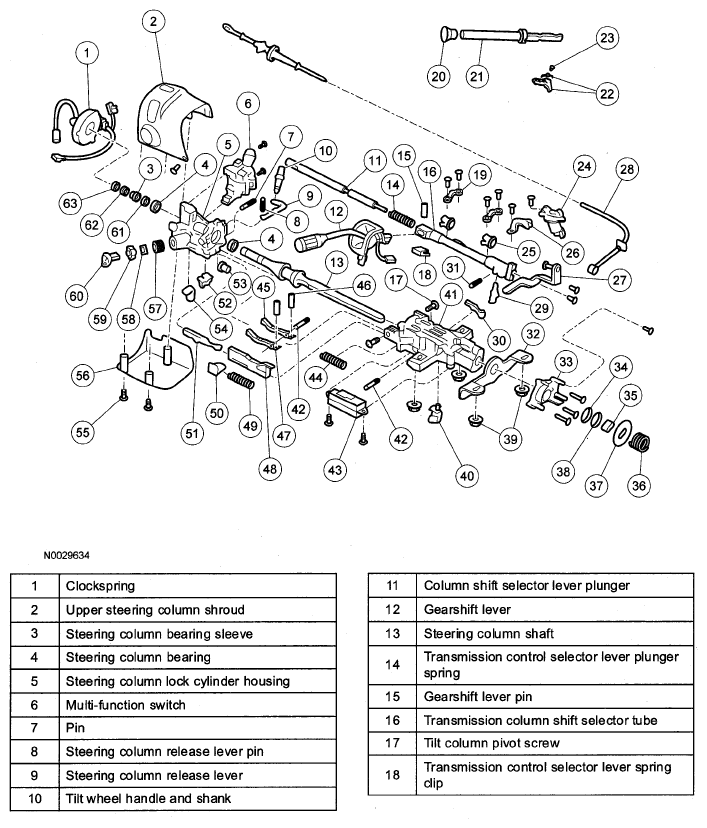

Fig 1: Exploded View Of Steering Column Components

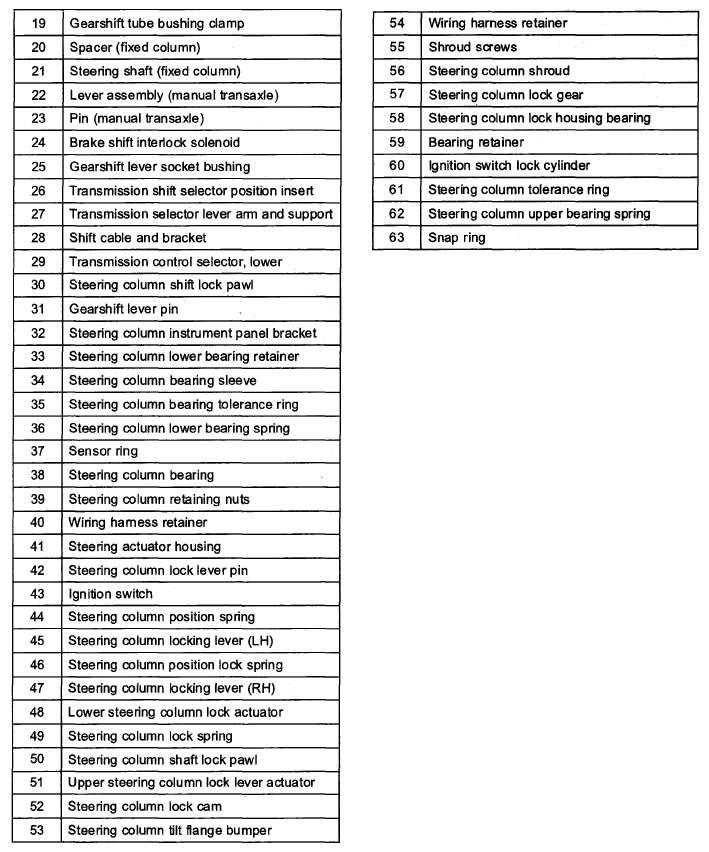

Fig 2: Steering Column Legends
