Inspection and Verification: Notes

  1. Verify the customer concern.
  2. Visually inspect for obvious signs of mechanical damage.

    Visual Inspection Chart

    VISUAL INSPECTION CHART

    Mechanical
    • Fluid level
    • Tire pressure
    • Tires
    • Drive belt
    • Drive belt tensioner
    • Steering column alignment
    • Tie-rod ends
    • Suspension components
    • Steering column shaft U-joints
    • Intermediate shaft bolts
    • Power steering reservoir baffle
    • Power steering reservoir screen
    • Power steering pressure lines, fittings or O-rings
    • Power steering return hoses and clamps
    • Steering gear
    • Power steering pump
    • Power steering pressure switch
  3. Inspect the power steering fluid for the following conditions:
    NOTE:
    • It may be necessary to add power steering fluid to achieve the correct level.
  4. Check the fluid level and clean the power steering components.

    With the ignition OFF:

    • check the power steering fluid level and add fluid as necessary.
    • wipe off any visible signs of fluid or residue build up.
    • Wipe off the power steering pump, power steering pressure hose, power steering return hose, power steering fluid cooler, hose assembly and steering gear.
      CAUTION:
      • Do not hold the steering wheel at the stops for an extended amount of time. Damage to the power steering pump may occur.
    • Start the engine and turn the steering wheel from stop-to-stop several times.
  5. Visually inspect the power steering hydraulic line/hose connections for leaks.
    • If a leak is detected at a power steering pressure or return hose, install a new hose. See POWER STEERING .
    • If a leak is detected between a fitting nut, seal the fitting nut using a Teflon® joint seal.
    • If a leak is detected at a threaded fitting or clamp plate joint, tighten to specification. If the leak is still evident, visually inspect the O-rings or Teflon® seals. Install new as necessary. See POWER STEERING .
    • If a leak is detected at the power steering reservoir, install a new reservoir. See POWER STEERING FLUID RESERVOIR - CIII PUMP .
    • If a leak is detected at a constant tension spring clamp, verify that the hose is not damaged and is fully installed on the hose fitting. Make sure that the constant tension spring clamp is correctly positioned. If the leak remains, install a new constant tension spring clamp.
    • If a leak is detected at a screw clamp joint, verify that the hose is fully installed on the hose fitting before tightening the screw clamp. If the leak remains, install a new screw clamp. See POWER STEERING .
    • If a leak is detected at the power steering pressure switch, install a new switch.
  6. Visually inspect the power steering components for leaks.
    • If a leak is detected in the power steering pressure line or return hose, install a new hose.
    • If a leak is detected at the power steering pump, install a new power steering pump. See POWER STEERING PUMP - 2.3L or POWER STEERING PUMP - 4.0L .
      NOTE:
      • On vehicles with rack-and-pinion steering gear, it may be necessary to remove the bellows boot clamp from the steering gear bellows boot to inspect for internal steering gear leaks.
    • If a leak is detected in the steering gear, repair or install a new steering gear. See STEERING GEAR - 2WD or STEERING GEAR - 4WD
    • If a leak is detected in the power steering reservoir, install a new reservoir. See POWER STEERING FLUID RESERVOIR - CIII PUMP

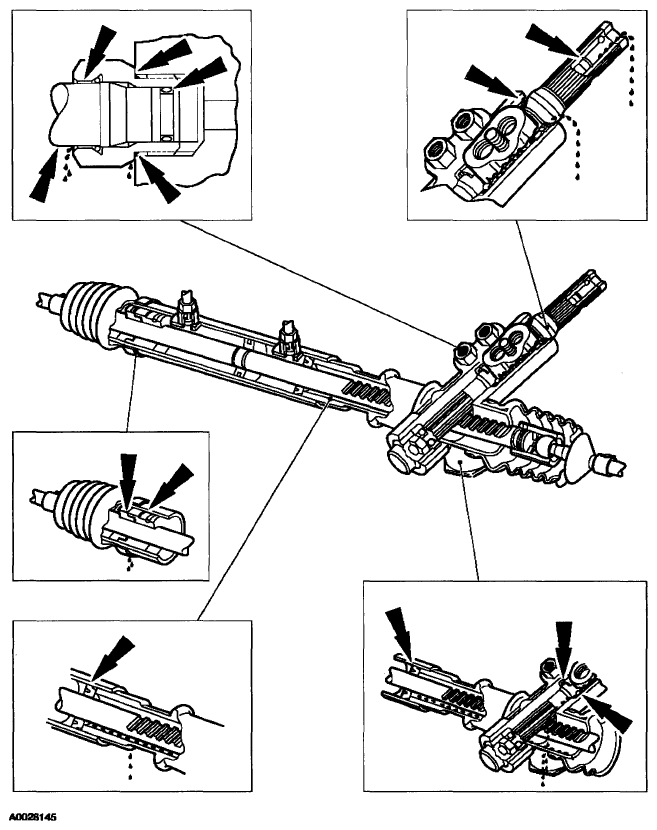

    External Leak Check - Potential Power Rack-and-Pinion Steering Gear Leak Points

    Fig 1: Identifying External Leak Check - Potential Power Rack-And-Pinion Steering Gear Leak Points
    G05499602Courtesy of MAZDA MOTORS CORP.
  7. For information on power steering leak detection, refer to COMPONENT TESTS  in this section.
  8. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding.
  9. If the cause is not visually evident, verify the symptom and see SYMPTOM TROUBLESHOOTING CHART - POWER STEERING  or see SYMPTOM TROUBLESHOOTING CHART - SUSPENSION NVH .
