Circuit Open/Short Inspection: Notes

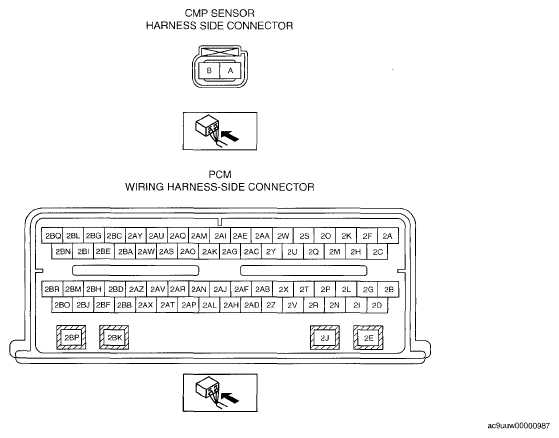

Fig 1: Identifying CMP And PCM Sensor Harness Side Connector

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [MZI-3.7] .)
2. Inspect the following harness for open or short circuit. (Continuity check)
