Connector Installation Note

After connecting the connector, rotate the lock lever in the direction of the arrow to install the DSC HU/CM connector.

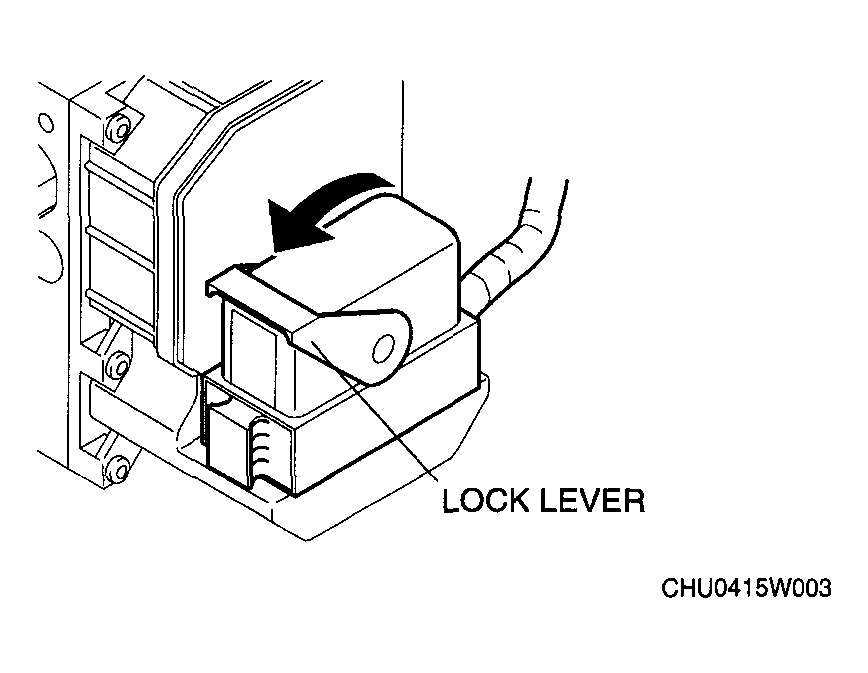

Fig 1: Installing DSC HU/CM Connector
Courtesy of MAZDA MOTORS CORP.
