Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Removal/Installation: Notes

  1. Remove the MAF/IAT sensor connector.
  2. Remove in the order indicated in  3.
  3. Install in the reverse order of removal.

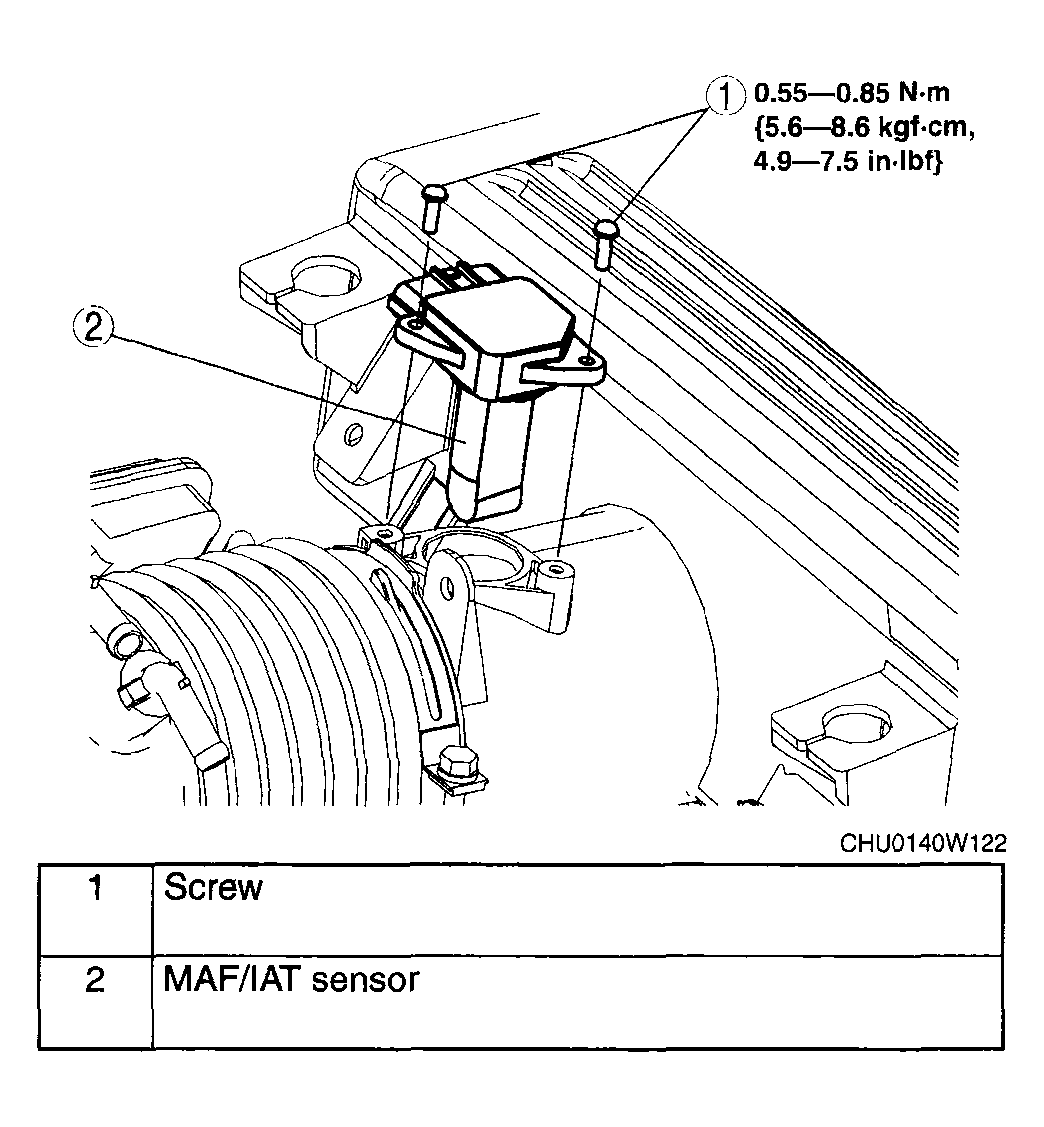

    Fig 1: MAF/IAT Sensor With Torque Specifications
    G04563012Courtesy of MAZDA MOTORS CORP.
